Specifications
|
|
Model
|
CS-H9c-R105-8H55WFL
|
|
Camera
|
|
Image Sensor
|
1/3” Progressive Scan
CMOS
|
|
Shutter Speed
|
Self-adaptive shutter
|
|
Lens
|
Top lens: 2.8 mm @ F1.6,
viewing angle: diagonal 110°, horizontal 96°, vertical 54° Bottom lens:
6 mm @ F1.6, viewing angle: diagonal 60°, horizontal 52°, vertical
28°
|
|
PT Angle
|
Pan: 350°, Tilt: 80°
|
|
Minimum Illumination
|
0.5 Lux @(F1.6, AGC ON), 0
Lux with IR (*data is obtained from EZVIZ laboratories)
|
|
Lens Mount
|
M12
|
|
Day & Night
|
IR-cut filter with
auto-switching
|
|
DNR
|
3D DNR
|
|
WDR
|
Digital WDR
|
|
Black & White Night
|
30m / 98ft
|
|
Video & Audio
|
|
Max Resolution
|
3K (2880 × 1620)
|
|
Frame Rate
|
Self-adaptive during
network transmission
|
|
Video Compression
|
H.265 / H.264
|
|
H.265 Type
|
Main Profile
|
|
Video Bit Rate
|
Ultra-HD; Hi-Def; Standard.
Adaptive bit rate.
|
|
Audio Bit Rate
|
Self-Adaptive
|
|
Network
|
|

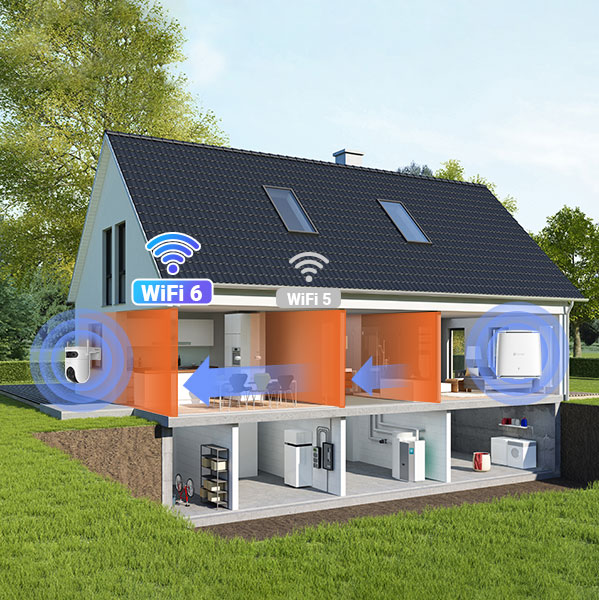

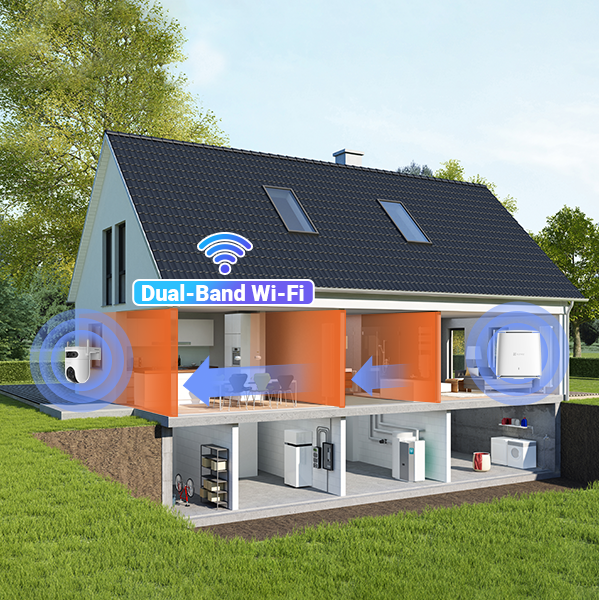

Wi-Fi Standard
|
IEEE802.11a, 802.11b,
802.11g,802. 11n,802.11ac,802.11ax
|
|
Frequency Range
|
2.4 GHz ~ 2.4835 GHz, 5150
MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz
|
|
Channel Bandwidth
|
Supports 20 MHz @ 2.4G,
Supports 20 / 40 / 80 MHz @ 5G
|
|
Security
|
WPA-PSK/WPA2-PSK
|
|
Transmission Rate
|
1b: 11 Mbps, 11a/g: 54
Mbps, 11n: 150 Mbps, 11ac: 433 Mbps, 11ax: 600 Mbps
|
|
Wi-Fi Pairing
|
AP paring
|
|
Protocol
|
EZVIZ cloud proprietary
protocol
|
|
Interface Protocol
|
EZVIZ cloud proprietary
protocol
|
|
Wired Network
|
RJ45 × 1 (10M / 100M
Adaptive Ethernet Port)
|
|
Functions
|
|
Smart Alarm
|
AI-powered human shape
detection; AI-powered vehicle shape detection; Motion detection
|
|

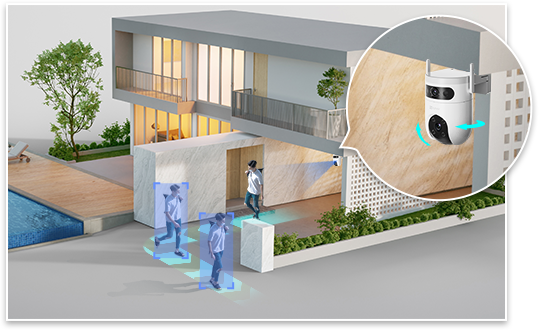

Auto Tracking
|
Supports
|
|
Customized Alert Area
|
Supports
|
|
Two-way Talk
|
Supports
|
|

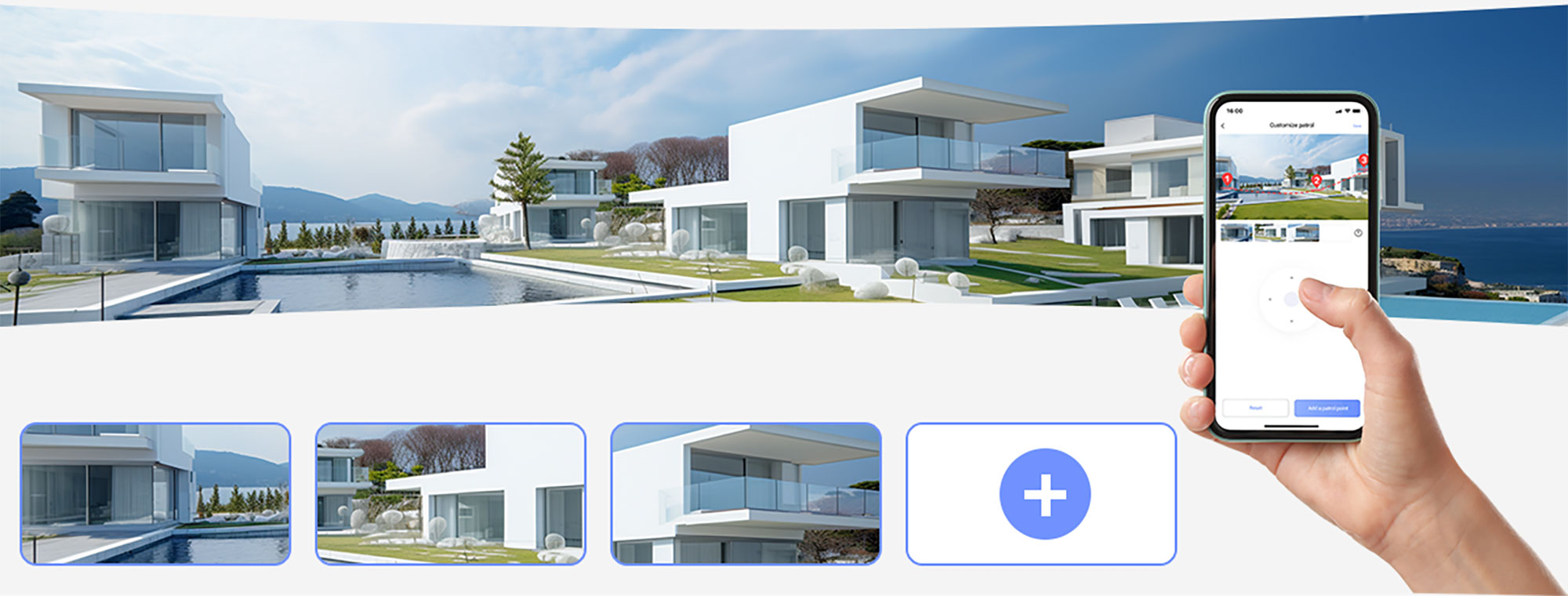

Preset Locations
|
Supports
|
|
General Function
|
Anti-Flicker, Dual-Stream,
Heart Beat, Password Protection, Watermark
|
|
Storage
|
|
Local Storage
|
Supports microSD card (Max.
512 GB)
|
|
Cloud Storage
|
Supports EZVIZ CloudPlay
Storage (Subscription required)
|
|
General
|
|
Operating Conditions
|
-30°C to 50°C ( -22 °F to
122 °F ) Humidity 95% or less (non-condensing)
|
|
IP Grade
|
Weatherproof Design
|
|
Power Supply
|
DC 12V/1.5A
|
|
Power Consumption
|
Max. 18 W
|
|

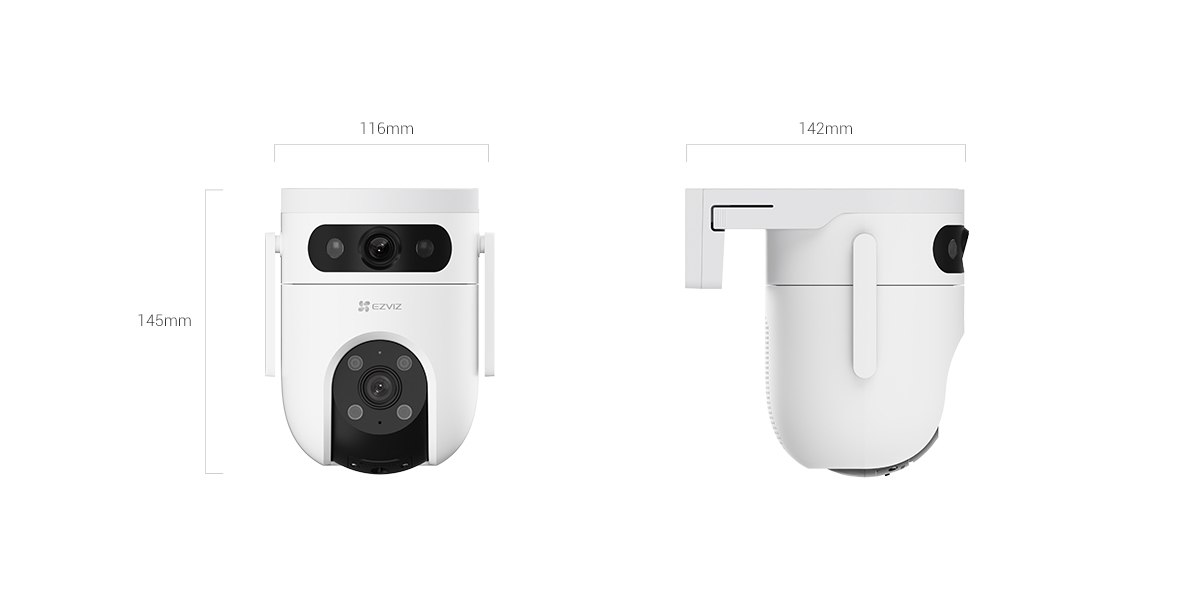

Dimensions
|
147 × 116 × 142 mm (5.71 ×
4.57 × 5.59 inch)
|
|
Packaging Dimensions
|
150 × 150 × 194mm (5.90 ×
5.90 × 7.64 inch)
|
|
Weight
|
Net weight: 633 g (22.33
oz) With package: 974 g (34.36 oz)
|
|
In the box
|
|
In the box
|

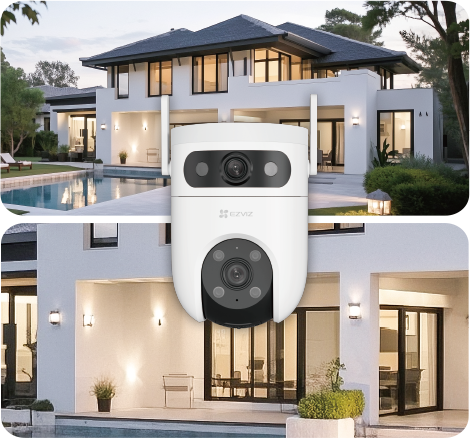

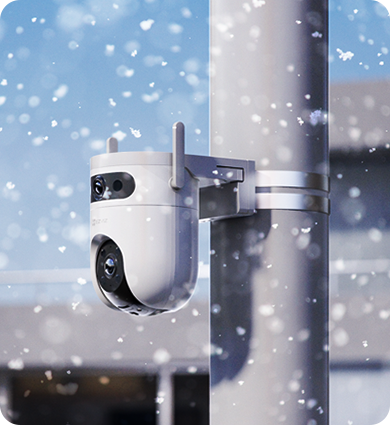

- H9c Dual 3K Camera
|
|
- Drill Template
|
|
- Screw Kit
|
|
- Waterproof Kit
|
|
- Power Adapter
|
|
- Regulatory Information ×
2
|
|
- Quick Start Guide
|
|
Certifications
|
|
Certifications
|
CE / UL / WEEE / RoHS /
REACH
|
