CB3 Kit |CB3 (AOV Version)

CB3 Kit

Detail

Never worry about losing power again with the CB3 solar panel kit. Built to keep up with your 24/7 security needs, the camera is equipped with cutting-edge AOV technology. Thanks to AI-enhanced smart detection, and advanced Wi-Fi 6 support, the kit is thoughtfully designed to offer reliable, continuous outdoor security that adapts to your everyday life

With EZVIZ’s innovative AOV technology, the CB3 provides a plenty of recordings beyond PIR-triggered events, while managing power consumption much more efficiently.

About the EZVIZ AOV Technology >

Want all-day recording video but worry about the battery will run out too quickly? Use the AOV mode. The CB3 can connect and process the images captured at preset time intervals to render a continuous time-lapse video that shows you changes in the environment.⁴ When an important human activity happens, the camera starts recording a normal video, so you don't miss an important detail.

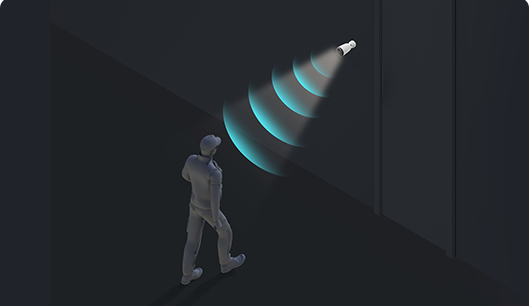

When the AOV is on, the camera can detect an approaching person or vehicle at a much greater distance. If a person or vehicle appears in the camera, even if they are outside the range of the PIR sensor, the camera will notice that and inform you immediately.

CB3 + Solar Panel 5W
Smart Home Battery Camera Kit

Standard

PIR-Triggered Recording

5W
High Charging Efficiency

2 hours

24 hours

Rechargeable
Battery

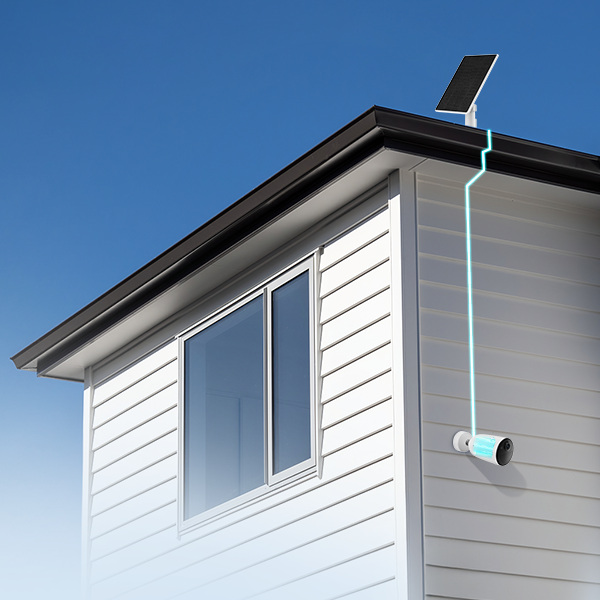

The CB3 is serious about getting hassle-free. Install its included solar panel at a sunny spot, and connect it to the camera, so the system will take free, green energy to keep the watch around the clock, all by itself. With just two hours of direct sunlight each day, you can enjoy uninterrupted monitoring near your premises.

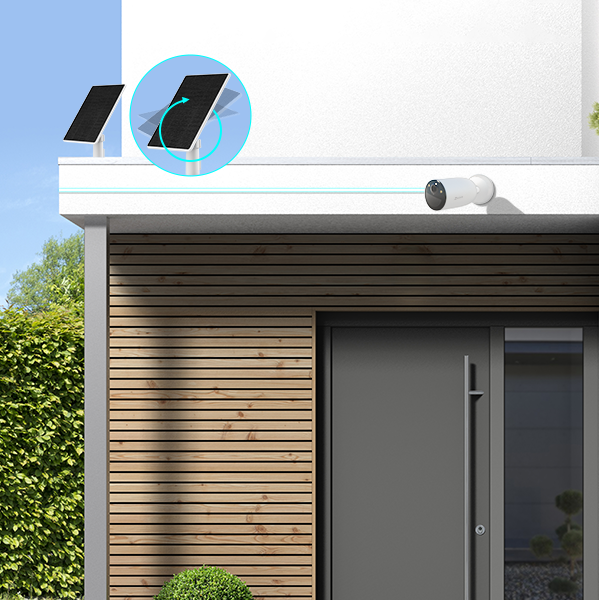

With an adjustable bracket that rotates 360 degrees and a 3-meter cable, the solar panel offers incredible installation flexibility, you can find the best location or angle for optimal sun exposure.

360° Adjustable Bracket

3-Meter Cable

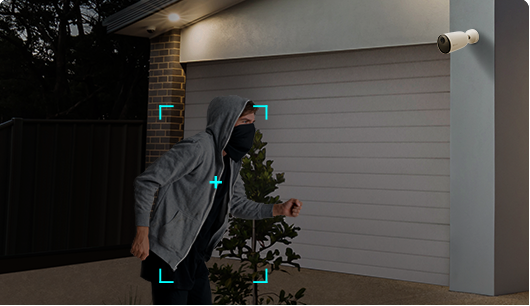

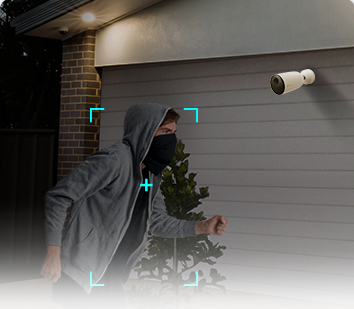

Say goodbye to a long list of annoying alerts that only capture flying insects or falling leaves. The CB3 is capable of detecting people and cars in particular, while providing flexible settings for you to customize the detection area and sensitivity. It pushes notifications to your phone when it’s truly worthy of your attention.

Blurred and pixelated night vision is now a thing of the past. The improved lens with the large F1.6 aperture capture more light and thus enable long-range color night vision of up to 15 meters. What’s better, you can choose between the color mode or the infrared mode as you’d like.

Faster connections, boosted coverage

Being Wi-Fi 6-enabled means that the CB3 is far less likely to face network challenges when operating outside your house. In addition to enhanced Wi-Fi connection stability, you can enjoy smoother 2K video streaming and faster camera response when controlling it remotely.

Private property. Please do not enter!

Respond with high-quality audio
Easily respond to any visitor by simply using your phone to speak remotely. The camera can also auto-play a recorded voice message when a motion is detected.

Use active defense to defer
Upon detection of intruders, the camera will set off a loud siren and flash two dazzling spotlights to let the uninvited strangers know they have been detected.

Deliver protection, rain or shine
With a robust weatherproof design, the camera and the included solar panel ensure continuous operation, making it your reliable partner in all weather scenarios.

50%

Video Storage Space

50%

Required Bandwidth

Enhance video experience with H.265
The H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.⁷

Alexa, show me the yard.

Control with your voice, hands-free
The camera supports easy integration to your existing voice assistants. You can pull up the video feed by simply saying “Alexa” or “Hey Google”.²

At EZVIZ, we design products with sustainability in mind, building a smart home that's ready for the future and responsible for the planet. By integrating the use of solar technology and planting forests, we enable you to live a smart lifestyle with less carbon emissions.

Initiative of the Year

Data comes from EZVIZ Lab’s test under standard conditions, based on a usage of 5 minutes per day. May vary due to environmental factors and the frequency of camera activities.
Amazon Alexa and Google Assistant are not available in certain languages and countries.
The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
To use this function, a compatible microSD card (sold separately) must be inserted into the camera.
When the AOV mode is enabled, according to EZVIZ Lab's test results under standard conditions, the CB3 is able to detect movements at a distance of up to 25 meters during the day, and up to 12 meters during the nighttime. The actual detection range may differ due to other environmental factors.
Data from EZVIZ Lab's test results, under the following standard condition: AM=1.5, 25℃, 1000W/m², SMQ. The data is obtained based on the camera set on AOV mode and with the AOV interval set as AUTO. The actual charging efficiency may vary depending on sunlight intensity and other environmental factors, while the actual hours of camera use may also differ due to the frequency of camera activities and other environmental factors.
Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.

CB3 Kit

Non-stop protection achieved through a green approach

Specifications

Specifications
Model	CS-CB3-R200-1K3WFL
Camera
Image Sensor	1/2.8” 3-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination	0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed	Self-adaptive shutter
Lens	2.8 mm@ F1.6 Diagonal angle: 130° Horizontal angle: 108° Vertical angle: 56°
Day & Night	IR-cut filter with auto switch
DNR	3D DNR
Night Vision	IR Distance:15m, Color Night Vision Distance:15m
Video & Audio
Max. Resolution	2304 × 1296
Frame Rate	15 fps; Self-Adaptive during network transmission
Video Compression	H.265 / H.264
Video Bit Rate	Quad-HD; Full HD; Hi-Def; Standard Adaptive bit rate
Audio Bit Rate	Self-Adaptive
Max. Bitrate	1.5 Mbps
Network
Bluetooth	Supports
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	WPA-PSK/WPA2-PSK, WPA3-Personal
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement	4Mbps
Function
Smart Alarm	AI-powered human shape detection AI-powered vehicle shape detection
Two-way Talk	Supports
General Function	Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage	Supports microSD card (Up to 512 GB)
Cloud Storage	Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions	-20 °C to 50 °C (-4 °F to 122 °F), Humidity 95% or less (non-condensing)
IP Grade	IP65
Power Supply	DC 5V/2A (Compatible power adapter needs to be purchased separately)
Battery Capacity	5200 mAh
Power Consumption	Max. 10W
Product Dimensions	153.3 × 62.95 × 62.95 mm
Packaging Dimensions	103 × 103 × 186 mm
Weight	Net Weight: 222.7 g With Package: 569 g
Specifications
Model	CS-PSP5-R100-3M
Performance Parameter
Power Voltage	5.7 V
Power Current	877 mA
Open Circuit Voltage	6.9 V
Short Circuit Current	0.92 A
Max. Power	5 W
Interface	Type-C
Solar Cell Efficiency	23.50%
Operating Conditions	-20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing)
IP Grade	IP65
Mechanical Data
Solar Cell Type	Monocrystalline solar cells
Power Cable Length	3 meter
Product Dimensions	202.7 × 148 × 2.5 mm (7.98 × 5.83 × 0.10 inch)
Packaging Dimensions	225 × 170 × 70 mm (8.86 × 6.69 × 2.76 inch)
Weight	656 g (23.14 oz)
In the box
In the box	- CB3 (AOV Version) Camera
	- Screw Base
	- Pin
	- Power Cable
	- Drill Template
	- Screw Kit
	- Regulatory Information × 2
	- Quick Start Guide
Certifications
Certifications	CE / REACH / WEEE / RoHS
