8W Battery Solar Panel

Detail

Key Features

High Charging Efficiency: With a charging efficiency of up to 8 W, it is well-suited for situations requiring a sustained power supply or high-power facilities.
High Conversion Efficiency: The solar panel uses high-performance monocrystalline silicon solar cells to charge your battery cameras at an industry-leading conversion efficiency of up to 23.5%, ensuring higher generating capacity.²
Easy Installaion: Easily install it in any location to ensure optimal sunlight exposure, thanks to its 360° rotatable bracket and 3-meter cable.
Weatherproof design: Tailored for outdoor use, the solar panel is durable enough to withstand any weather conditions, whether it is rain or shine.
Made to Support Versatile Protection: Designed to enhance the performance of EZVIZ battery cameras, the solar panel eliminates the constraints of power outlets, providing a reliable solution for protecting large areas such as gardens, farms, camping sites, or construction sites.

Actual charging efficiency may be slightly higher or lower depending on sunlight intensity and other environmental factors.
Currently only following models support Bluetooth communication: EB3-R200, BC1c-R100, CB5-R100, EB5-R100. The list may grow as EZVIZ launches more products in the future. Please check the compatibility before purchasing.
The data is calculated when the Solar Panel charges both an EB8 Outdoor Pan & Tilt Battery Camera and itself from zero battery to full battery status, under the condition that no power-consuming camera activities (including detection, video recording, pan and tilt actions, etc.) happen during the charging period. The data collecting process is under STC (Standard Tested Condition): AM=1.5, 25℃, 1000W/㎡, SMQ.
The data is calculated when the Solar Panel has fully charged its onboard battery, and powers a fully-charged EB8 Outdoor Pan & Tilt Battery Camera under the condition that the EB8 is set on the always-recording mode. For different camera usage or other battery camera models, the estimate hours of power use may vary.

8W Battery Solar Panel

Captures solar energy for continuous power supply

Specifications

Specifications
Model	CS-PSP8-R100-3M
Performance Parameter
Power Voltage	5.4 V ± 5%
Power Current	1.48 A ± 5%
Open Circuit Voltage	6.8 V ± 5%
Short Circuit Current	1.64 A ± 5%
Max. Power	8 W ± 5%
Interface	Type-C
Solar Cell Efficiency	23.5%
Operation Temperature	-20ºC ~ 60ºC (-4ºF ~ 140ºF), humidity 90% or less (non-condensing)
IP Grade	(non-condensing)
Mechanical Data
Solar Cell Type	Monocrystalline solar cells
Power Cable Length	3 meters

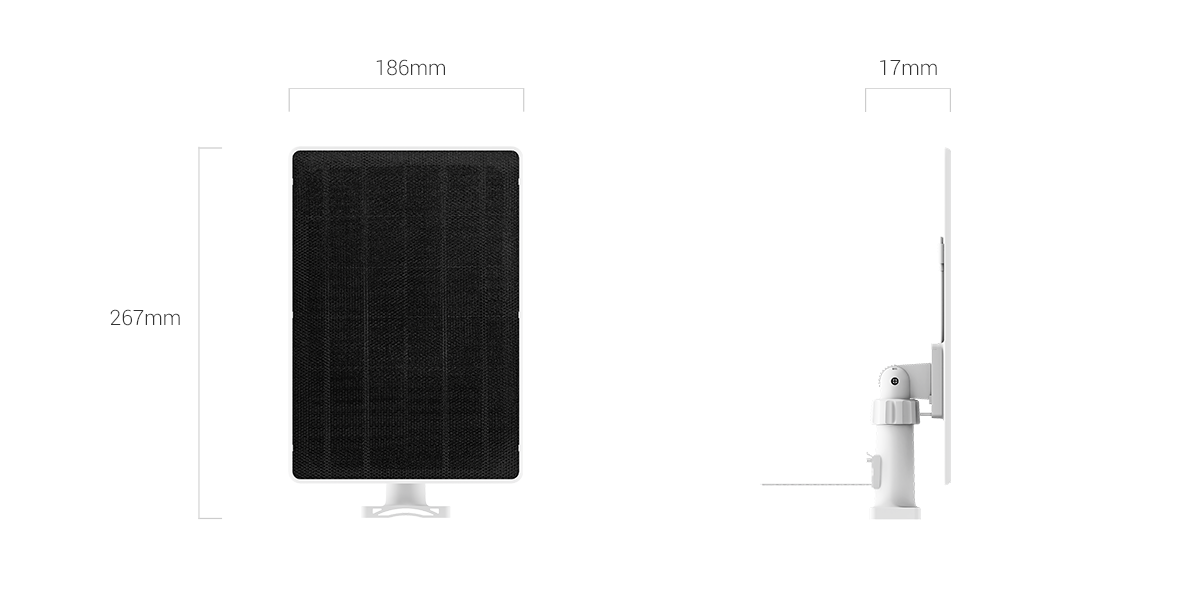

Product Dimensions	267 × 148 × 17.5 mm (10.51 × 5.83 × 0.69 inch)
Packaging Dimensions	282 × 194 × 70 mm (11.10 × 7.64 × 2.76 inch)
Weight	907 g (32 oz)
In the box
In the box	- Solar Panel 8 W
	- Adjustable Mounting Bracket
	- Screw Kit
	- Regulatory Information
	- Quick Start Guide
Certifications
Certifications	CE / REACH / WEEE / RoHS
