Solar Panel with Battery Storage
12W
Harness sunlight to generate and store clean energy
Designed to Charge All EZVIZ Outdoor Battery Cameras
Solar Panel with Battery Storage
12W
Harness sunlight to generate and store clean energy
Designed to Charge All EZVIZ Outdoor Battery Cameras
Key Features
Always on guard with green power supply
This innovative solar panel provides your EZVIZ outdoor battery camera with uninterrupted green energy and reduces human labor for frequent camera recharging. Notably, our solar panel boasts an impressive onboard storage capacity of up to 37Wh, ensuring that your camera gets backup power it needs even when the sun takes a break.
Conversion Efficiency
23%
Charging Power
12W
Expected Performance when powering the EB8 Battery Camera |
||
---|---|---|
Total Battery Capacity |
Total Charging Time³ |
Estimated Camera Use⁴ |
37Wh (On Solar Panel) + 38Wh (On EB8 Camera) |
6.25h |
40 hours |
Expected Performance
when powering the EB8 Battery Camera
Total Battery Capacity |
37Wh (On Solar Panel) + 38Wh (On EB8 Camera) |
---|---|
Total Charging Time³ |
6.25h |
Estimated Camera Use⁴ |
40 hours |
Power two cameras at a time

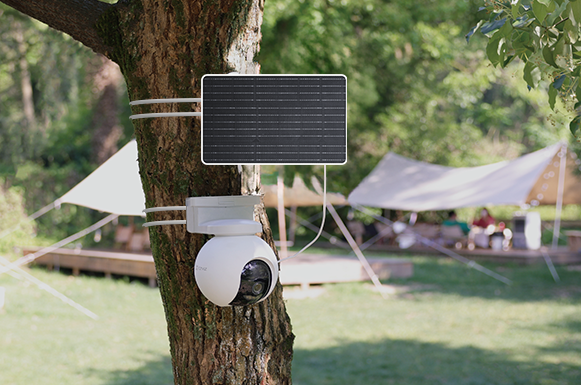

The solar panel can be connected to two battery-powered cameras and charge them simultaneously. Mount your security camera where you need it, then find a sunny spot to install the solar panel with the included 3-meter-long cables.
Easy installation, lasting sunlight
Enjoy flexibility in selecting the perfect spot for optimal sun exposure with our adjustable mounting bracket and accessories.
Pole Mount

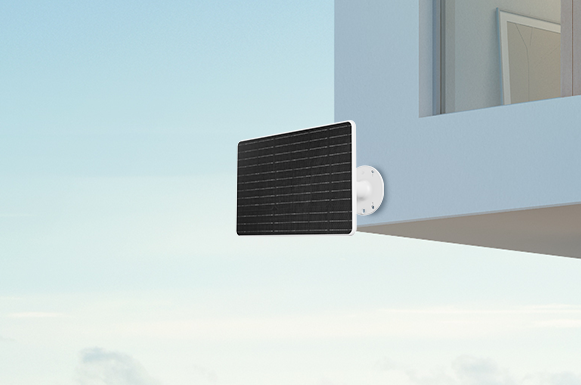

Wall Mount

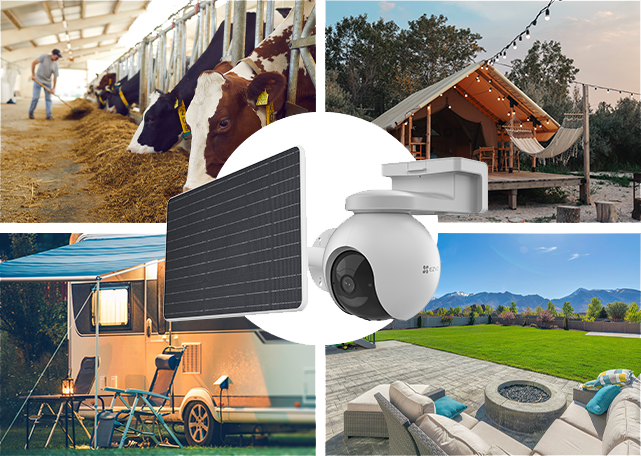

Your trusted ally for an outdoor space
A perfect companion for the EZVIZ battery cameras that take care of larger areas, the solar panel helps greatly reduce human labor and energy bill.
Specifications | |
---|---|
Model | CS-PBC12-R100-10AH |
Performance Parameter | |
Open Circuit Voltage | 6.7V (-5%, +10%) |
Short Circuit Current | 2.3A (-5%, +20%) |
Power Voltage | 5.7V (-5%, +10%) |
Max Power Current | 2.1A (-5%, +20%) |
Max. Power | 12W |
Battery Capacity | 37.23Wh rechargeable battery (battery life varies based on settings, usage & temperature) |
Interface | One Type C Port for Input Double USB-A Ports for Output |
Transformation Efficiency | 0.23 |
Operating Conditions | -20°C to 60°C (-4°F to 140 °F ), Humidity 90% or less (non-condensing) (The working environment temperature range for battery camera charging should be maintained at 0-45°C ) |
IP Grade | IP65 |
General | |
Material | High efficiency monocrystalline silicon cell |
Product Dimension | 202x221x326mm |
Packaging Dimensions | 370x115x260mm |
Weight | Net Weight: 1.45KG With Package: 2.07KG |
In the box | |
In the box | - Solar Panel with Battery Storage |
- Adjustable Mounting Bracket | |
- Hex Socket Head Cap Screw | |
- Drill Template | |
- Type-C to Micro USB Transformer (×2) | |
- Mount Bracket (×2) | |
- Power Cable (×2) | |
- L-Shaped Wrench | |
- Screw Kit | |
- Regulatory Information (×2) | |
- Quick Start Guide | |
Certifications | |
Certifications | CE / REACH / WEEE / RoHS |
