8W Battery Solar Panel

Detail

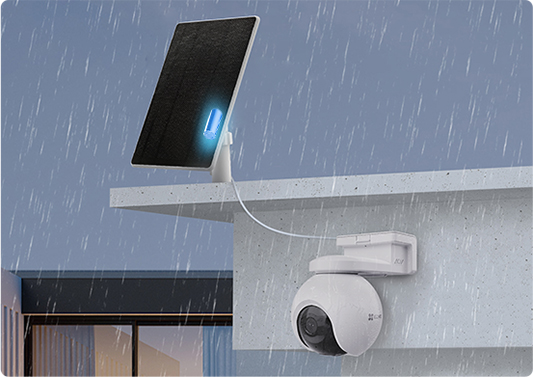

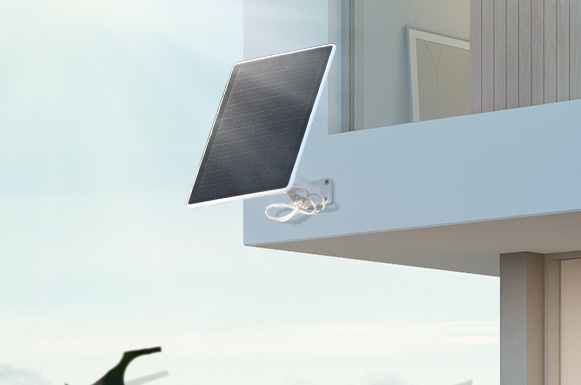

Solar Panel with Battery Storage
Solar Panel with Battery Storage
Solar Panel with Battery Storage
Solar Panel with Battery Storage

-20°C

Low-Temperature Charging

Solar Panel with Battery Storage

-20°C

Low-Temperature Charging

Solar Panel with Battery Storage
8W Battery Solar Panel
From sun to snow, stay active in every extreme
Specifications
Specifications
Model CS-PBC8-R100-10AH
Performance Parameter
Max. Power 8.0 W (± 5%)
Power Voltage 5.4 V (± 5%)
Power Current 1.48 A (± 5%)
Open Circuit Voltage 6.8 V (± 5%)
Short Circuit Current 1.6 A (± 5%)
Standard Tested Condition AM=1.5, 25°C, 1000 W/m²
Transformation Efficiency 22%
Battery Capacity 3.65V 10, 200 mAh Rechargeable Battery, (37.23Wh)
Bluetooth Supports
Interface
Input Port Type-C
Output Port Type-C
General
Operation Temperature -20°C~60°C(-4°F~140°F), Humidity 95% or less, (non-condensing)
Charging Temperature -20°C~50°C
IP Grade IP65
Material High-efficiency monocrystalline silicon cell
Product Dimensions 267.22 x 186.42 x 172.5 mm
Packaging Dimensions 302 x 214 x 70 mm
Weight Net Weight: 791 g, With Package: 1064 g
In the box
in the box - Device
- Adjustable Mounting Bracket
- Hex Socket Head Cap Screw M8X20
- Drill Template
- Power Cable x 2
- L-Shaped Wrench
- Screw Kit
- Type-C to Micro USB Transformer x 2
- Hoop x 2
- Regulatory Information x 2
- Quick Start Guide
Certifications
Certifications CE / REACH / WEEE / RoHS
