EZVIZ E4p Smart Wi-Fi Panoramic Fisheye Camera

3K⁺

E4p

3K⁺

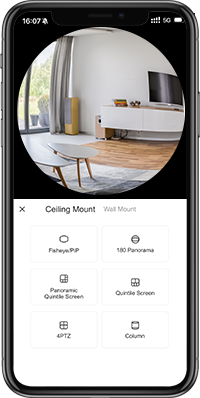

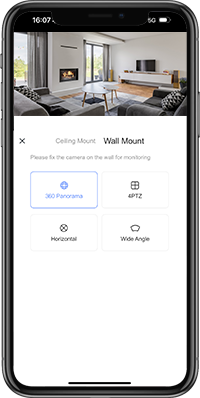

Meet with the first fisheye camera from EZVIZ, the E4p. This compact and powerful device features a stylish UFO-inspired design, an ultra-wide angle lens for sharp 3K⁺ panoramic images and customizable split-screen options to reduce blind spots. Equipped with AI-powered people detection and advanced night vision, it provides comprehensive protection for your home or business without the need for additional cameras.

No more blind spots, no more compromises. The E4p delivers stunning 3K⁺ resolution and full 360° coverage, so you can see every detail from every angle with just one device. Whether securing your home, office, or business, enjoy complete peace of mind knowing nothing goes unnoticed.

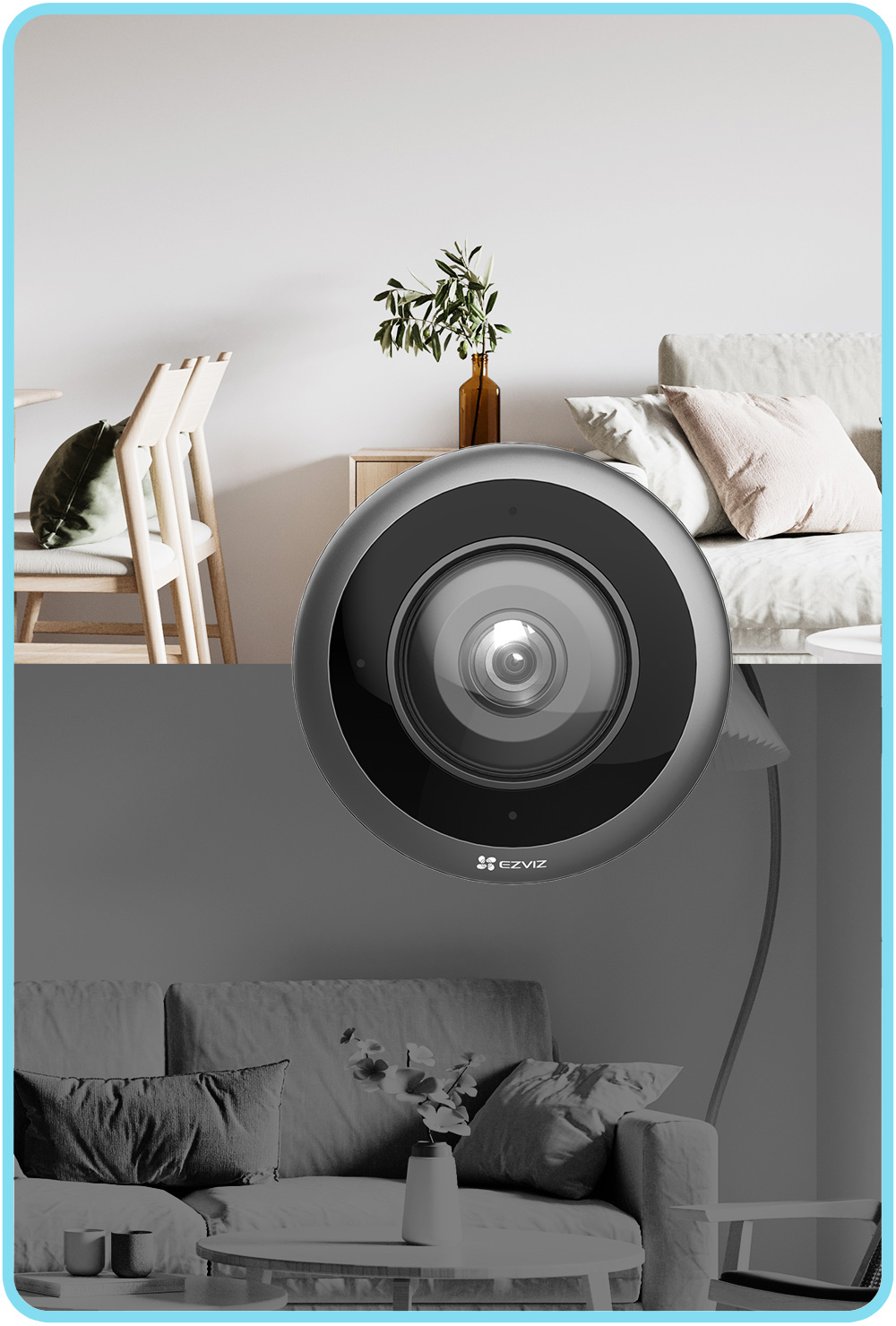

DayNight

A lot of activities go on inside your home, but you don’t want to get constantly alerted when your curtains flutter in the wind. The E4p is smart enough to notice human activities in particular and can capture sudden sound changes in the environment – all without additional fees to unlock.

Upon human shape detection, the E4p not only renders a full picture of the scene with its fisheye lens, but also zooms in to take a closer look at the recognized human via its picture-in-picture function.⁴

Hearing is just as crucial as seeing when it comes to security. The advanced audio processing system of E4p ensures you never miss what’s happening beyond the camera’s view, delivering clearer, more immersive sound quality.

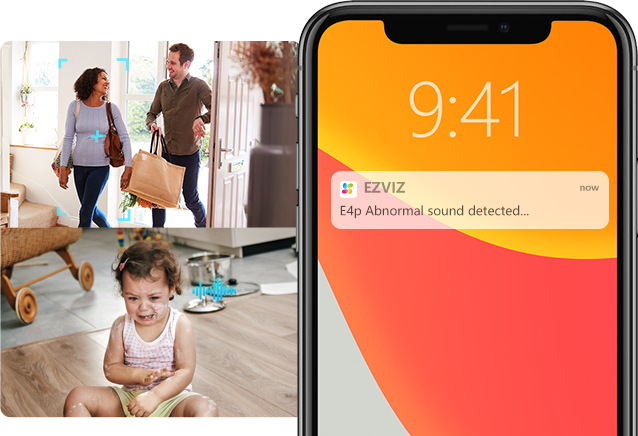

The E4p is designed to listen for more than just everyday sounds. Even the crash of breaking glass or a slamming of door can also be detected upon your choice and the E4p will immediately alert you.

The E4p makes installation a breeze with its powerful magnetic base. Simply attach the base to your wall or ceiling, snap on the E4p, and you’re all set to enjoy its full capabilities.

Enjoy two-way audio clearly

Remote meetings can be conducted easily with the E4p, enabling effortless real-time communication with high-quality audio, even from afar.

Alexa, show me the meeting room.

Hands-free control

With integration to your voice assistants, you can pull up the video feed by simply saying “Alexa” or “Hey Google.”¹

Dual video storage options

Capture and secure important moments or unforgettable memories on a large 512 GB microSD card, or by subscribing to the EZVIZ CloudPlay.²

50%

Video Storage Space

50%

Required Bandwidth

50%

Video Storage Space

50%

Required Bandwidth

H.265 video technology

H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.³

We put security as the primary goal of every product and system that we build. We have also developed various privacy features and flexible settings that you can use at any time to feel even safer.

Sleep Mode

Our global certifications in the fields of information security, privacy information security, and cloud security

We put security as the primary goal of every product and system that we build. We have also developed various privacy features and flexible settings that you can use at any time to feel even safer.

Sleep Mode

Our global certifications in the fields of information security, privacy information security, and cloud security

Google Assistant and Amazon Alexa are not available in certain languages and countries.
Local storage cards must be purchased separately. Cloud storage service is only available in certain markets. Please verify availability before making a purchase.
Data from EZVIZ Lab's test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.
The picture-in-picture mode is only available if the human shape detection function is enabled.

E4p

Smart Wi-Fi Panoramic Fisheye Camera

Specifications

Specifications
Model	CS-E4p-R100-8C6WKF
Compression
Image Sensor	1/2.8” Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	M12
Day & Night	IR-cut filter with auto switch
DNR	3D DNR
WDR	Digital WDR
Compression
Image Sensor	1/2.8” Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Max. Resolution	3K⁺ (2320 × 2320)
Frame Rate	Max. 25 fps
Network
Smart Alarm	Motion Detection, AI-Powered Human Shape Detection
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface
Storage	Supports microSD card (max. 512 GB)
Power	Type-C
Wi-Fi
Standard	IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range	2.4G: 2.412 GHz ~ 2.472 GHz 5G: 5.17 GHz ~ 5.25 GHz
Channel Bandwidth	Support 20 MHz
Security	WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b 11 Mbps, 11g 54 Mbps, 11nHT20 MCS7, 11a 54 Mbps, 11nHT20 MCS7, 11ac MSC7
Output Power (EIRP)	19 dBm
Antenna Gain	2.4G: 1.79 dBi 5G: 3.61dBi
General
Operating Conditions	-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply	DC 5 V / 2 A
Power Consumption	Max. 8 W
IR Range	Max. 10 meters (32.81 ft)

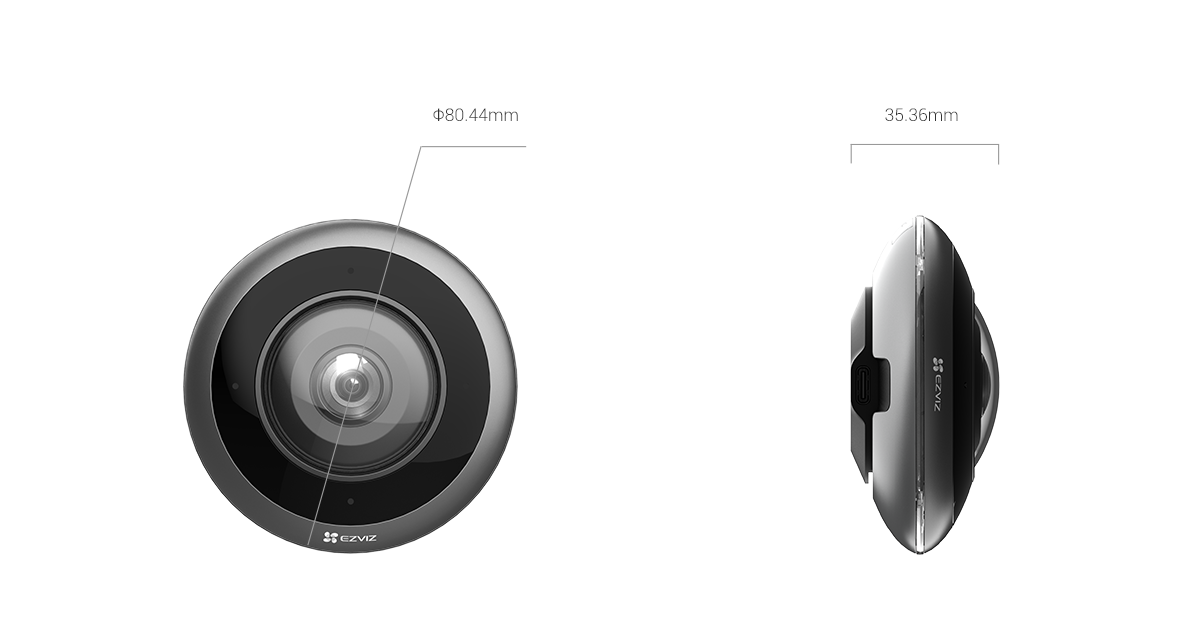

Product Dimensions	φ80 × 35 mm (φ3.15 × 1.38 inch)
Packaging Dimensions	114 × 114 × 120 mm (4.49 × 4.49 × 4.72 inch)
Bare Weight	122 g (4.3 oz)
Weight	610 g (21.52 oz)
In the box
In the box	- E4p Camera
	- Mounting Base
	- Drill Template
	- Power Adapter
	- Type-C Cable
	- Screw Kit
	- Pin Key
	- Regulatory Information × 2
	- Quick Start Guide
Certifications
Certifications	CE / RoHS / REACH / WEEE / UL
