Smart Fingerprint Lock

The DL05 sticks to the core values of a truly smart lock – easy to unlock, smart in controls, and safe by design. Connected via Bluetooth or Wi-Fi, it boasts flexible unlocking methods, and connects you to your home wherever you are via the EZVIZ App. Under a modern and sleek appearance, its sturdy lock body and multiple safety features help guard your entrance properly.

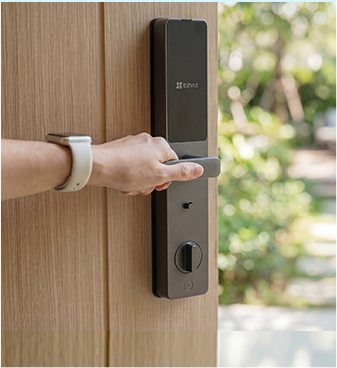

Now you don’t have to be anxious about losing your key or forgetting long codes. Simply grab the handle to naturally place your fingertips on the scanner, then you're in.

Proximity Card

Passcode

Mechanical Key (For Emergency)

Unlock the door remotely via your smartphone

Share the bluetooth key to your family

Create temporary passcodes for visitors

Add new members to unlock the door

Get the message notifications via the EZVIZ App, whenever and wherever. You receive push notifications when your door is opened or when the lock's battery is low. You will also be alerted when there are suspicious activities of removing your lock or forced entry.

Explore DL05’s smart potentials by connecting it to a collection of EZVIZ smart home products. With the help of an interlinked EZVIZ indoor PT camera², you know not only when the door gets opened, but also who enters with an auto-recorded video.

Supports Anti-Peeping Codes

Anti-Tamper Alarm

IP65 weatherproof design¹

Plenty of power for a busy household

The DL05 offers a long standby time – up to 365 days⁵ – and it’s easy to change the batteries when needed. You can switch between the Wi-Fi mode and the Bluetooth mode via the EZVIZ App to make better use of the battery.

Emergency Power Supply

Plenty of power for a busy household

Please note that only the exterior lock panel of the DL05 is weather-resistant.
The DL05 currently supports the following cameras to snap a photo or record a video at the certain preset viewing angle upon sensor detection: H6c, C6N, CP1, TY1, TY2. The list may grow as EZVIZ launches more compatible products in the future.
The wrong-attempt protection function is supported when using the fingerprint, passcodes or proximity cards to unlock the door.
When the privacy mode is enabled, only the administrator can unlock the door using his/her fingerprints, passcodes or proximity cards, or anyone with the mechanical emergency key.
When being connected via Bluetooth with the Wi-Fi mode disabled, the lock can run up 365 days with fully charged batteries based on the usage of 10 openings per day.
When the lock is connected via Wi-Fi, its battery life may reduce due to internet activities, and the actual use may vary due to the network stability or other environmental factors.
When your home network is not reliably stable, it is recommended to turn off the Wi-Fi mode to better manage the lock's battery usage.
Due to variations in national transport restrictions, specifications and final delivered items shall be determined by the actual shipment.

DL05 (6068)

Unlock your door right at your hand

Specifications

Specifications
Model	CS-DL05-R201-WBCP-GR (6068) / CS-DL05-R200-WBCP-BK (6068)
Material and Specification
Panel Material	Aluminum Alloy
Panel Size	360 x 67 x 27 mm
Color	Metallic Grey
Unlocking Direction	Press the handle down to unlock; lift the handle up to lock.
Lock Body	6068
Weatherproof	IP65 (Front Panel)
Emergency Charging	Type-C
Working Power	1.5V AA alkaline batteries x 8
Technical Specification
Unlocking Methods	Fingerprint, Passcode, Proximity Card, Mechanical Key, Bluetooth Key via the EZVIZ App, Temporary Codes, Remote Unlocking
User Capacity	50 pcs
Fingerprint Capacity	50 pcs
Passcode Capacity	50 pcs
Card Capacity	50 pcs
Communication Methods	2.4 GHz Wi-Fi, Bluetooth
Temporary Access Codes	Supports
Anti-Peeping Code	Supports, Max. 20 digits
Low-Battery Warning	Supports
Privacy Mode	Supports
User Management	Supports
Real-Time Notification	Supports
Wrong-Attempt Protection	Supports, Five failed attempts in five minutes trigger a three-minute lockout
Anti-Tamper Alarm	Supports
Remote Control	Supports
Child Safety Lock	Supports
Supported Door Thickness	40-120 mm
Working Temperature	-25°C ~ 70°C
Operating Humidity	10% ~ 95%
In the box
In the box	- DL05 Smart Fingerprint Lock (Front Panel + Rear Panel + Hole Template)
	- Lock Body
	- Standard Screw Bag
	- Lock Body Screw Bag (2)
	- Locating Screw Bag
	- Reserving Screw (2)
	- AA-Sized Battery (8)
	- Mechanical Key (2)
	- Square Rod
	- Proximity Card (2)
	- Silicon Plug (For Rear Panel)
	- Regulatory Information
	- Quick Start Guide
Certifications
Certifications	CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE
