CB90x Dual 4G Kit

Detail

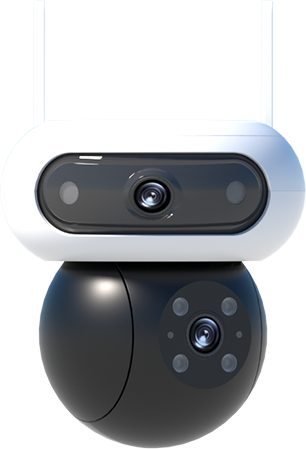

EZVIZ CB90x Dual-Lens All-Day Recording 4G Camera
+Solar Panel 8W

2K⁺ & 2K⁺

CB90x Dual 4G Kit

2K⁺ & 2K⁺

The CB90x Dual 4G Kit combines EZVIZ’s three key technological advances in one package -groundbreaking dual-lens image processing for ultra-wide coverage and co-action smartness, true-to-life ColorFULL night vision under ultra-low light, and the Always-On Video mode paired with an included solar panel, designed to enable all-day recording while significantly reducing battery and storage requirements.

No matter where life takes you, this 4G camera has you covered. When Wi-Fi is spotty or goes offline, it automatically switches to 4G, so you’re always connected with real-time alerts.

Villa Backyard

Household Garage

Forest Cabin

Farm Land

Construction Site

Temporary Exhibition

Equipped with two lenses in sharp 2K+ resolution, the CB90x Dual 4G can capture wide-angle views and detailed shots with only one device. Now you no longer have to make a difficult choice between monitoring your entrance or backyard – the two lenses can turn to different perspectives at the same time.

Wide-angle View

Close-up View

Perspective One

Perspective Two

Whenever you want to start a manual patrol, set up new viewing angles, or want some specific close-up details when viewing the big picture, just make few taps on the EZVIZ App to control the dual lenses.

Click to check, with both wide and close-up views

Understand the whole, big picture while paying attention to the important details, by using the EZVIZ App. You can tap the area of interest on the wide-angle viewing box, so a close-up view will be shown on the side at the same time.

Unlike most dual-lens cameras in the market that only stitch the views of two lenses, the CB90x Dual 4G is smart enough to complete a complicated detection activity by involving two lenses at the same time.

Step 1

The top lens detects a moving person in its view

Step 2

The bottom lens rotates and follows the moving person

Unlike most battery cameras on the market, which have trouble detecting and recording videos due to short battery life and non-smart sensors, the camera is equipped with EZVIZ's groundbreaking AOV technology to enable all-day recording while ensuring a long standby time with a much greater detection distance.

About the EZVIZ AOV Technology >

So you no longer

Overlook lurking situations

When on the AOV mode, in addition to normal detection-triggered videos, the CB90x Dual 4G camera can capture images at preset time intervals⁵ and process them to create a smooth time-lapse video showing the changes over time, even when there is no activity. You can now obtain all-day recording on a battery-powered camera without having to plug it into a power outlet.

Unlike other battery cameras that heavily rely on PIR sensors to capture only nearby activities, this camera can detect an approaching person or vehicle at a much greater distance. If a person or vehicle appears, it will immediately notice that and inform you straight away.

Standard

Other battery cameras only with PIR sensor

Full-color vision is now made through the night, with EZVIZ’s innovative ColorFULL technology. Even when all the lights go out, every colorful detail can still get captured and presented in a natural way.

The camera faithfully captures reality in even ultra-low-light conditions – it recreates the colors with the correct light and shadow ratios throughout the entire scene, without uneven brightness or dark corners. It helps you capture finer detail, stay aware of a lurking situation and reduce the nuisance of flashes.

EZVIZ ColorFULL Night Vision

Down to
0.01 Lux

Wherever you install the CB90x Dual 4G camera, it manages to comprehend the surrounding objects to automatically create an evenly exposed, clear image, even in the dark. Users can choose to enable the “Balanced Image Exposure” option via the EZVIZ App at any time.¹

8W
High Charging Efficiency

2 hours

24 hours

10,400 mAh
Large Battery Capacity

The CB90x Dual 4G is serious about getting hassle-free. Install its included solar panel at a sunny spot, and connect it to the camera, so the camera will take free, green energy to keep the watch around the clock, all by itself.² Enable the AOV Auto mode, you can enjoy uninterrupted monitoring near your premises all day long.

In addition to capturing human activities with a wealth of information, the CB90x Dual 4G recognizes the shape of a car from other moving objects. If your family member pulls up in front of your driveway or someone parks in your detected area, you will be notified immediately.

AI-Powered Human Shape Detection
(On both lenses)

AI-Powered Vehicle Shape Detection
(On both lenses)

No Subscription Fee

How can I help you?

Private property. Please do not enter!

You have a delivery.

Respond with high-quality audio
Easily respond to any visitor by simply using your phone to speak remotely. The camera can also auto-play a recorded voice message when a motion is detected.

Use active defense to defer
Upon detection of intruders, the camera will set off a loud siren and flash two dazzling spotlights to let the uninvited strangers know they have been detected.

Alexa, show me the backyard.

Control with your voice, hands-free
The camera supports easy integration to your existing voice assistants. You can pull up the video feed by simply saying “Alexa” or “Hey Google”.³

50%

Video Storage Space

50%

Required Bandwidth

Enhance video experience with H.265
The H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.⁸

At EZVIZ, we design products with sustainability in mind, building a smart home that's ready for the future and responsible for the planet. By integrating the use of solar technology and planting forests, we enable you to live a smart lifestyle with less carbon emissions.

Initiative of the Year

This feature requires OTA update via the EZVIZ App before using. Please check the device page on your EZVIZ App for detailed information.
The inclusion of the supporting solar panel in the CB90x Dual 4G is intended to provide an additional power source for the main device, helping to extend the battery life of the camera to reduce the frequency of recharging. To prolong the battery life, we recommend you to enable the AOV mode for wiser battery consumption. Please note that the CB90x Dual 4G only supports working with the EZVIZ Solar Panels that use Type-C charging cables.
Amazon Alexa and Google Assistant are not available in certain languages and countries.
The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
To use this function, a compatible microSD card (sold separately) must be inserted into the camera.
When the AOV mode is enabled, according to EZVIZ Lab's test results under standard conditions, the CB90x Dual 4G is able to detect movements at a distance of up to 25 meters during the day, and up to 12 meters during the nighttime. The actual detection range may differ due to other environmental factors.
Data from EZVIZ Lab’s test results under standard conditions. The distance figures are obtained based on the camera's four spotlights or four IR lights being switched on and pointing in the same direction. Actual distance may vary depending on battery level and other environmental factors.
Data from EZVIZ Lab's test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.

CB90x Dual 4G Kit

Remarkable coverage. Ultra-flexibility.

EZVIZ CB90x Dual-Lens All-Day Recording 4G Camera + 8W Solar Panel

Specifications

Specifications
Specifications	CS-CB90x/SP-R100(4MP+4MP W4GA)
Camera
Image Sensor	1/2.8” 4-Megapixel Progressive Scan CMOS Sensor
Shutter Speed	Self-adaptive shutter
Lens	Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 122°, Horizontal 105°, Vertical 58° Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 65°, Horizontal 56°, Vertical 30°
PT Angle	Top Lens: Pan: 220°, Tilt: 10° Bottom Lens: Pan: 324°, Tilt: 90°
Minimum Illumination	0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR (* data is obtained from EZVIZ laboratories)
Day & Night	IR-cut filter with auto switch
DNR	3D DNR
Night Vision Distance	35 m (When two lenses point in the same direction)
Video & Audio
Max Resolution	2560 × 1440
Frame Rate	Max. 15fps; Self-adaptive during network transmission
Video Compression	H.265 / H.264
Video Bit Rate	Ultra-HD; Hi-Def; Standard; Adaptive bit rate
Audio Bit Rate	Self-adaptive
Max. Bitrate	2 Mbps (Total)
Network
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n , 802.11ax
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Support 20MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g :54Mbps, 11n :72Mps, 11ax: 114Mbps
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement	4 Mbps
Bluetooth	Supports
Frequency Bands	IN LTE-FDD: B1/B3/B5/B8 IN LTE-TDD: B34/B38/B39/B40/B41 EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
Function
Smart Alarm	AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection
Auto Tracking	Supports
Customized Alert Area	Supports
Two-Way Talk	Supports
General Function	Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage	Supports microSD card (max. 512 GB)
Cloud Storage	EZVIZ CloudPlay storage
General
Operating Conditions	-20°C to 50°C ( -4°F to 122 °F ) Humidity 95% or less (non-condensing)
Battery Capacity	10,400 mAh
IP Grade	IP65
Power Supply	DC 5 V / 2 A (Adapter needs to be purchased separately)
Power Consumption	Max. 10 W
Dimensions	135 × 145 × 229.5 mm (5.32 × 5.71 × 9.04 inch)
Packaging Dimensions	300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch)
Weight	Net weight for CB90x: 862g Net weight for Solar Panel 8W: 428g With package: 1902g
Specifications
Model	CS-PSP8-R100-3M
Performance Parameter
Power Voltage	5.4 V ± 5%
Power Current	1.48 A ± 5%
Open Circuit Voltage	6.8 V ± 5%
Short Circuit Current	1.64 A ± 5%
Max. Power	8 W ± 5%
Interface	Type-C
Solar Cell Efficiency	≥22%
Operating Conditions	-20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing)
IP Grade	IP65
Solar Cell Type	Monocrystalline solar cells
Power Cable Length	3 meter
Mechanical Data
Solar Cell Type	Monocrystalline solar cells
Power Cable Length	3 meter
Product Dimensions	267.3 × 186.5 × 17.5 mm
Weight	428 g
In the box
In the box	- CB90x Dual 4G Camera
	- Solar Panel 8W
	- Drilling Template
	- Adjustable Mounting Bracket
	- Screw Kit × 2
	- Power Cable
	- Regulatory Information × 4
	- Quick Start Guide × 2
Certifications
Certifications	CE / REACH / WEEE / RoHS
