Detail

TY8

Pan & Tilt Wi-Fi Camera

Customizes Your Outdoor Security, the Way You'd Like

3K Vibrant & Clear Footage

Pan-Tilt Design for a Panoramic View

350°

Horizontal Rotation

90°

Vertical Rotation

AI-Powered Human / Vehicle Shape Detection

Auto-Zoom Tracking Smartly Identifies, Focuses and Follows on Human Activities

Line Crossing Detection

Intrusion & Out-of-Zone Detection

Two Patrol Modes for Auto-Security

One-Click Return to Pre-Set Directions

Active Defense with Siren and Red-Blue Warning Lights1

Dual-Band Wi-Fi

Weatherproof Design

Smart Color Night Vision

Easy Installation

Supports Local & Cloud Storage2

3K Vibrant & Clear Footage

Pan-Tilt Design for a Panoramic View

AI-Powered Human / Vehicle Shape Detection

Auto-Zoom Tracking Smartly Identifies, Focuses and Follows on Human Activities

Dual-Band Wi-Fi

Two Patrol Modes for Auto-Security

Always-on Video Mode¹

Always-on Video Mode¹

One-Click Return to Pre-Set Directions

Active Defense with Siren and Red-Blue Warning Lights1

Smart Color Night Vision

Weatherproof Design

Easy Installation

Supports Local & Cloud Storage2

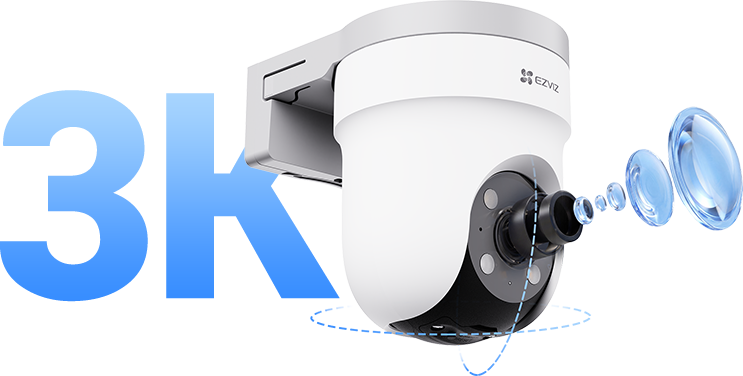

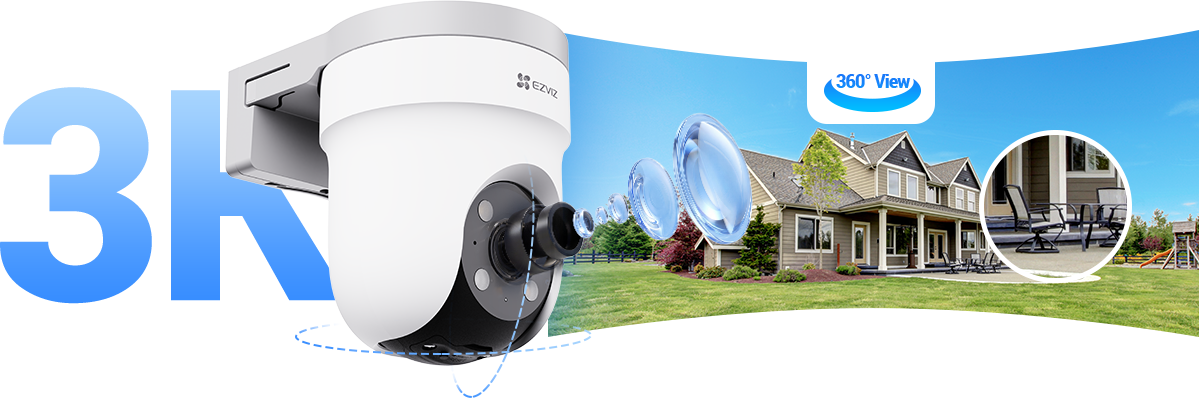

3K Panoramic View

Sees Every Corner in 3K Clarity

Keep your outdoor spaces protected with TY8's crystal-clear 3K resolution, capturing sharper details and more complete visuals so you never miss a thing.

350°

Horizontal Rotation

90°

Vertical Rotation

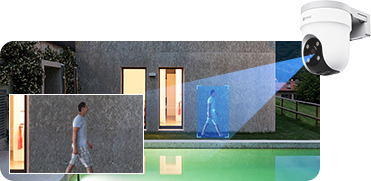

AI Human Shape & Vehicle Detection

Stays Informed with Smart Alerts for Free

The camera cuts through hours of footages by telling the difference between people, vehicles, and everyday motion. Instead of babysitting the live view, your camera will flag the crucial times and notify you on the EZVIZ App.

Customizable Detection Zones

Accurate Detection Alerts

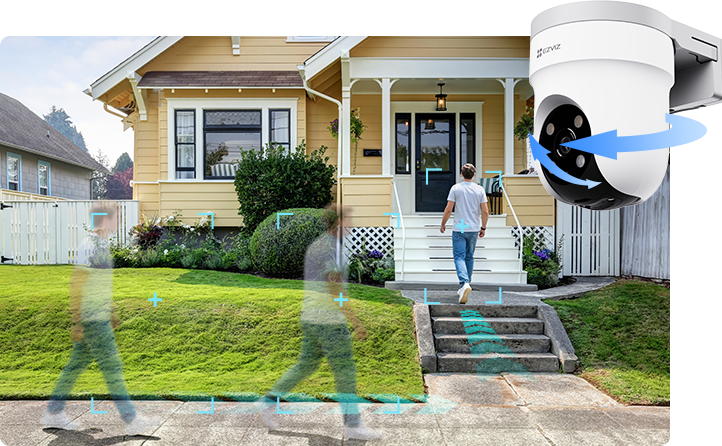

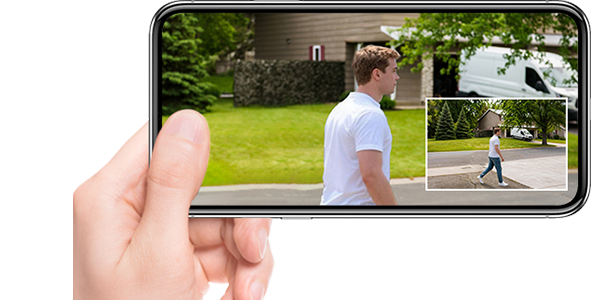

Auto-Zoom Tracking

Keeps What Matters in Sharp Focus with Auto Zoom

With auto-zoom tracking, the camera doesn't make important moments slip out of frame. When the camera detects human movement, it automatically pans to stay locked on the action and zooms in for a closer look.

Red-Blue Warning Lights & Loud Siren

Protection That Speaks in Additional Lights and Sound

Enjoy peace of mind wherever you go. When enabled, red-blue warning lights and a loud siren help deter intruders, while real-time alerts keep you in control. The lights and sound are off by default and can be easily turned on or off anytime through the app.

Go away!

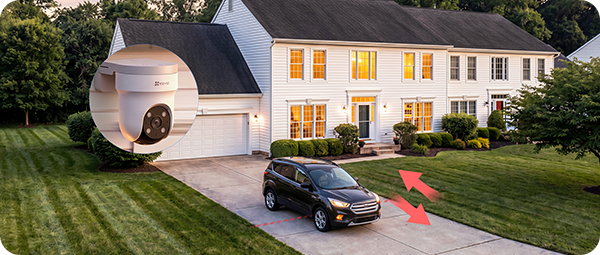

Line-Crossing Detection

Gets Alerted at the Line You've Drawn

Easily draw a virtual line in the app and receive instant alerts when a person or vehicle crosses it. Place the line exactly where it matters to cover critical areas and reduce unwanted notifications

Custom Line For Key Areas

Bi-Direction Detection For Complete Alerts

Intrusion & Out-of-Zone Detection

Knows the Moment When Someone Steps in or Walks away

Define custom activity zones around your most important areas and receive instant alerts when someone enters or exits. With precise, reliable detection, alerts are triggered only when it truly matters—reducing unnecessary notifications.

Up to 4 Detection Zones

Flexible 4-Point Detection Zones

Custom Irregular Zone Shapes

Auto Patrol Mode

Customizes Important Spots for Auto Security

Set up key spots you want the camera to watch, and it will automatically patrol between them at set intervals.

Patrol horizontally

Follow pre-set 4 points

Preset Location & Zoom Ratio

Saves Your Preferred Setting for Quick Views

Normally, checking specific areas requires manually adjusting the camera each time. With preset locations and zoom settings saved in advance, you can instantly return to important views with just one tap.

Saves Preferred Pan-Tilt Angles

Saves Zooms Ratios for Each Angle

Front Yard

Door

Garden

Backyard

Drive Way

Smart Color Night Vision

Lights Up Your Night with Bright Colors

Say goodbye to blurry, washed-out night footage. Powered by built-in spotlights, the TY8 brings the night to life with vivid, full-color clarity, even in near-total darkness.

Full-Color Night Vision

Smart Color Night Vision

Black & White Night Vision

Dual-Band Wi-Fi (2.4 / 5 GHz)

Enhances Live Feed for Lag-Free and Stable Clarity

With dual-band Wi-Fi, you can switch between 2.4 GHz and 5 GHz for smoother, faster streaming. Combined with enhanced connection stability, the camera maintains reliable connectivity wherever it's installed.

Brings More Convenience for Extra Peace of Mind

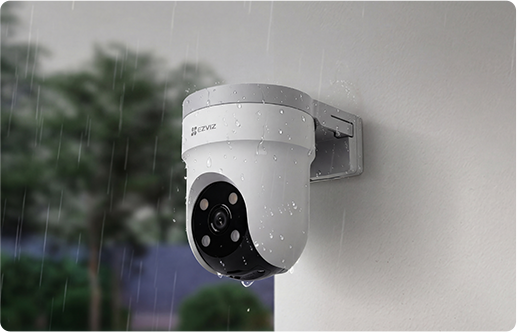

Weatherproof Design

Delivers Protection Whenever Rain or Shine

How can I help you?

You have a delivery.

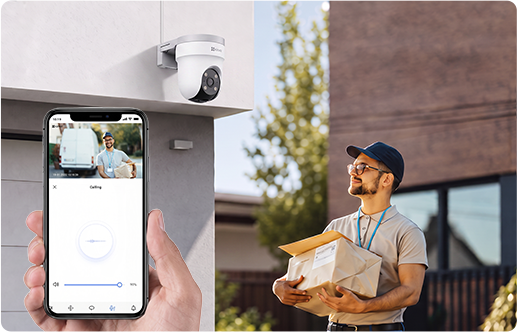

Two-Way Talk

Responds to Visitors with Your Phone

Local & Cloud Storage

Saves Your Videos with Two Options2

H.265 Video Compression

Enjoys Video Experiences with H.2653

We're committed to protecting with trust

We put security as the primary goal of every product and system that we build, and assiduously improve our practices to better protect your device, data and privacy.

End-to-end Data Encryption

AES

Data Encryption

TLS

Data Transmission Encryption

Our global certifications in the fields of information security, privacy information security , and cloud security

End-to-end Data Encryption

AES

Data Encryption

TLS

Data Transmission Encryption

Our global certifications in the fields of information security ,privacy information security , and cloud security

  1. Users may manually enable or disable the red and blue warning lights via the EZVIZ App.
  2. A local storage card must be purchased separately. Cloud storage service is only available in certain markets. Please verify the availability before making any purchase.
  3. Data from EZVIZ Lab's test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.
TY8 3K
Customizes Your Outdoor Security, the Way You'd Like
Specifications
Certifications
ModelCS-TY8-R220-1Q5WFL
Camera
Image Sensor1/3" Progressive Scan CMOS
Shutter SpeedSelf-adaptive shutter
Lens4 mm @ F1.6, viewing angle: 41° (vertical), 76° (horizontal), 90° (diagonal)
PT AnglePan: 350°, Tilt: 90°
Minimum Illumination0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens MountM12
Day & NightIR-cut filter with auto switch
DNR3D DNR
WDRDigital WDR
Black & White Night30 m / 98 ft
Video & Audio
Max Resolution2880 × 1620
Frame Rate15fps; Self-adaptive during network transmission
Video CompressionH.265 / H.264
H.265 TypeMain profile
Video Bit RateUltra-HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit RateSelf-adaptive
Network
Wi-Fi StandardIEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Frequency Bands2.4 GHz ~ 2.4835 GHz, 5.15GHz~5.25GHz, 5.25GHz~5.35GHz, 5.47GHz~5.725GHz
Channel BandwidthSupports 20MHz (2.4GHz) / supports 80MHz (5GHz)
SecurityWPA / WPA2 / WPA3, WPA-PSK / WPA2-PSK / WPA3-PSK
Transmission Rate11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps, 11ac: 433Mbps, 11ax: 600Mbps
Wi-Fi PairingAP pairing
ProtocolEZVIZ Cloud Proprietary Protocol
Interface ProtocolEZVIZ Cloud Proprietary Protocol
Wired NetworkRJ45 × 1 (10 M / 100 M adaptive Ethernet port)
Function
Smart AlarmAI-powered human / vehicle shape detection
Auto Zoom TrackingSupports
Customized Alert AreaSupports
Two-Way TalkSupports
General FunctionAnti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local StorageMicro SD card slot (Up to 512GB)
Cloud StorageEZVIZ Cloud Storage (Subscription required)
General
Operating Conditions-30°C to 50°C ( -22 °F to 122 °F ) humidity 95% or less (non-condensing)
IP GradeWeatherproof Design
Power SupplyDC 12 V / 1 A
Power ConsumptionMax. 12 W

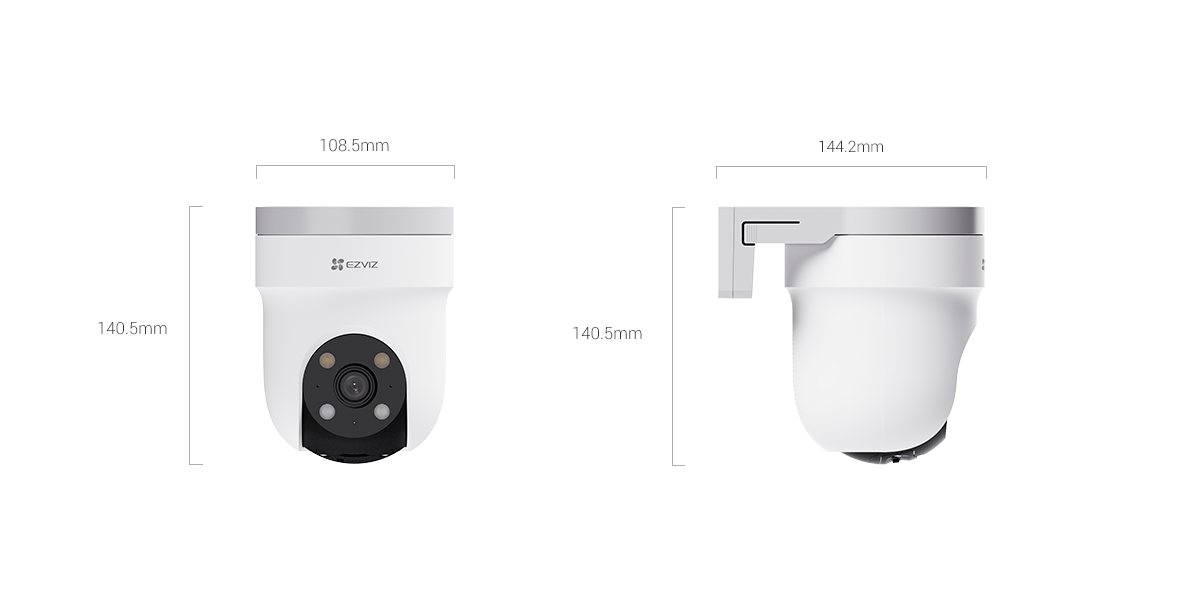

Dimensions108 × 140 × 144 mm (4.25 × 5.51 × 5.67 inch)
Packaging Dimensions150 × 160 × 194 mm (5.91 × 6.3 × 7.64 inch)
WeightNet Weight: 540 g (19.05oz) With Package: 810 g (28.57oz)
In the box
In the box- TY8 Camera
- Drill Template
- Waterproof Kit
- Screw Kit
- Power Adapter
- Regulatory Information × 2
- Quick Start Guide
Certifications
CertificationsCE / WEEE / RoHS / REACH / UL
