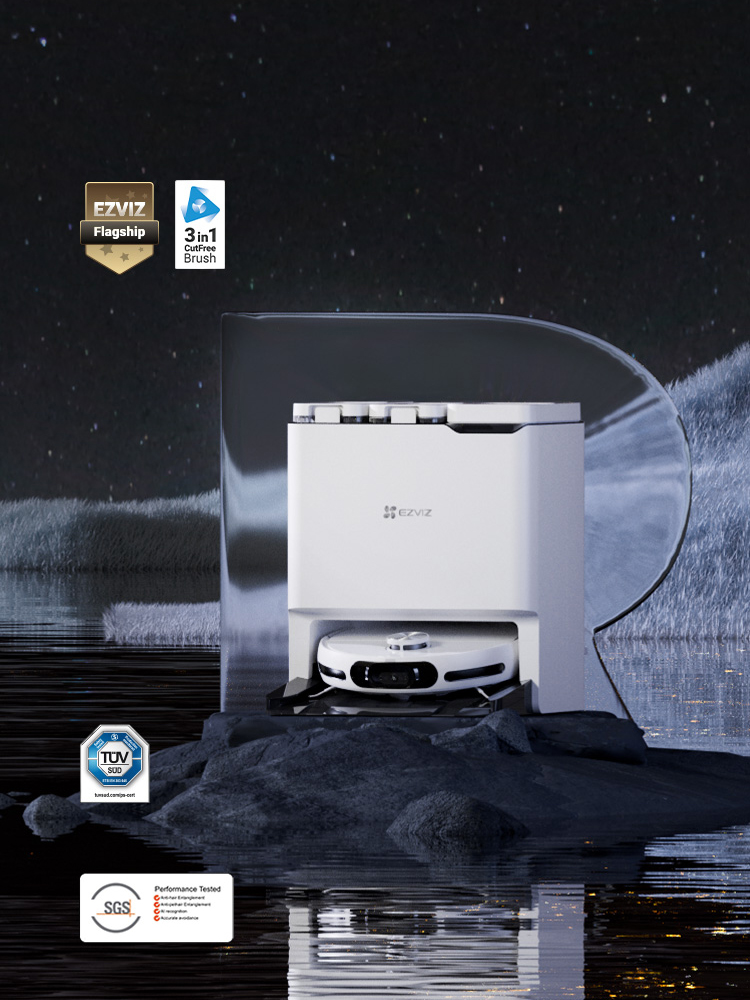

EZVIZ RS20 Max

Robot Vacuum & Mop Combo

EZVIZ RS20 Max

Robot Vacuum & Mop Combo

Omni-dimensional spatial information processing

Advanced obstacle avoidance

108

common objects

AI Task Automation

In-progress task adjustment

13,000Pa ultra-strong suction

Smart liquid stain detection & automatic re-mopping^*

Effective dynamic mopping down to every edge & corner

Long standby time (300 m² per single charge)

Effective dynamic mopping down to every edge & corner

Long standby time (300 m² per single charge)

Auto mop installation & detachment

N-in-1 omni-task base station

Full cycle of self-cleaning, emptying & water refilling

Meet the next-generation robot powered by EZVIZ AI and video intelligence. The RS20 Max is among the smartest in the market to quickly understand complex home environment, smoothly navigate itself around obstacles, automate tasks with real-time adjustment, and do much more without you lending a hand.

An agile robot that moves confidently around

The RS20 Max uses its incredible vision to identify an extremely long list of common objects found on your floor, so it doesn't get itself stuck or bumps into obstacles easily. It's smart enough to navigate itself throughout your entire home without you babysitting it all the time.

AI RGB Camera

LDS LiDAR

Structured Light

A drone-alike robot that cleans without a human pilot

Hands-free cleaning is now further personalized with complete automation. You can leave everything to your RS20 Max with one tap. It will create the cleaning routines on its own, making adjustments based on the room’s type, ensuring each area gets the right attention.

Auto-decides cleaning priorities & sequence by room type

Self-customizes cleaning modes & intensity for each room/area

A thoughtful robot that guarantees optimal results

Detects spilt liquid or sticky stains

Auto-lifts both main roller brush & side brushes

Auto-increases water flow through the mop pads

Auto-locks on the stain area to re-mop 3 times

The RS20 Max not only vacuums powerfully hard, but also effectively with its unique, patented 3-in-1 CutFree brush system. When in operation, it’s fully driven to bring out the most stubborn dirt trapped in gaps and fabrics, while keeping itself untangled from hair and dander.

Upgraded to 2.0

Bristle Brush

Rubber Brush

Blades

Flaps fast to dust off the carpet (3,000 times/minute)^†

Effective

Consistent 10N Pressure for In-depth Mopping

Detailed

Dynamic Edge Mopping for Hard-to-reach Areas

Refreshing

Built-in Clean Water Tank for Continuous Water Flow

Carpet detection

The RS20 Max never steps on a carpet during a mopping mission. It detects and avoids such areas to prevent your expensive carpets from getting wet or dirty.

Automatic mop detachment

Before moving onto the carpet, the robot returns to the base station to detach its mop pads. You don’t have to flip over the robot to remove them manually.

Suction boost mode

When undergoing vacuuming mission on a carpet, the robot automatically boosts its suction power to dig up hidden, stubborn dust, hair, and pet dander easily.

Vacuum While Mopping

Efficient and standard daily cleaning

Unlike most robots on the market that work with single - or dual-purpose charging stations, the RS20 Max’s pairing base station is more multi-functional than you’d imagine. With it, the RS20 Max completes a full self-cleaning cycle to become as good as new after even the heaviest cleaning task.

Cleans up to

300 m²

on a single charge^‡

Whole-house mapping for up to

4 floors

Greater intelligence comes with greater, easier controls. Schedule or start a mission remotely, or feel free to adjust the robot’s status during a task. You can now even freely change the heading direction of your RS20 Max to avoid bumpy areas and gaps.

NEW

Enjoy hands-free control with their third-party assistants. Now, this robot can work with Alexa, Google Assistant, and Siri, so you can connect it to your wider smart home ecosystem and get it to work by simply speaking to it. ^††

Alexa, turn on the RS20 Max.

As a multi-purpose smart device, the RS20 Max is equipped with a sharp camera to provide extra peace of mind. You get full control over the detection and recording features, so it only protects wherever and whenever you need it.

Certified for ETSI EN 303 645 standard in consumer IoT security

The RS20 Max can move flexibly and smoothly around your entire home without getting itself stuck or lost. It can also illuminate dark spaces under furniture or behind cabinets for great cleaning vision.

① RS20 Max Robot
② Base Station
③ Side Brush ×2
④ Mop Assembly ×2
⑤ Cleaning Tool
⑥ Cleaning Solution
⑦ Power Cord
⑧ Camera Sticker
⑨ Quick Start Guide ×2
⑩ Regulatory Information

*The smart liquid stain detection and smart floor re-mopping features require OTA via the EZVIZ App before using. Please refer to your EZVIZ App on the device page of the RS20 Max for detailed information and needed instruction.
†Data obtained from EZVIZ Lab’s testing results under standard conditions. Please note that the whole rolling brush operates at a speed of 1,000 rotations per minute, during which its three rubber parts flap the carpet consecutively and continuously to achieve a total of 3,000 beats.
‡Data obtained from EZVIZ Lab’s testing results under standard conditions, when the RS20 Max robot operates in the quiet mode. Actual use may vary due to the level of cleaning power, task modes and other environmental factors.
**Users can set up thresholds on the map via the EZVIZ App. The robot will automatically increase its power to cross the preset thresholds during cleaning missions.
††The referred voice assistant features are enabled via Amazon Alexa or Google Assistant devices. Please note that Amazon Alexa and Google Assistant may not be available in certain languages and countries. RS20 Max can work with Siri under Shortcuts. Users will first need to create a shortcut on their supported iPhone or iPad to customize a task run by the RS20 Max before initiating them via Siri.

RS20 Max

Ultra-Smart Cleaning Simplified to the Max

Specifications

Specifications
Model	CS-RS20-MAX
Navigation
Navigation & Mapping	LDS LiDAR
Obstacle Avoidance	Laser Obstacle Detection & Avoidance AI Virtual Recognition and Marking (Identify 108+ obstacles)
Cleaning Features
Cleaning Type	Room, Full, Area
Cleaning Mode	Vacuum Only Mop Only Vacuum before Mop Vacuum while Mop
Cleaning Frequency	1, 2
Vacuuming
Maximum Suction Power	13,000 Pa
Suction Level Adjustment	Quiet Original Powerful Super Power
Main Brush Pressure Boost	Supports
Particle Identification & Boost Suction Mode	Supports
Ultrasonic Carpet Detection	Supports
Mopping
Water Level Adjustment	Low, Medium, Max
Mopping Type	Dual Spin Mop
Cleaning Pressure	10 N
Mop Dimension	113 cm²
Mopping Area	300 m²
Hybrid Dynamic Edge Cleaning	Supports
Runtime
Battery Capacity	Li-ion 5200 mAh
Charging Time	3 h
Working Time	Silent Mode (Sweep）	Standard Mode (Sweep)	Silent Mode (Sweep & Mop)	Standard Mode (Sweep & Mop)
	220 min	190 min	130 min	110 min
Smart Features
AI Task Automation	Supports
Smart Liquid Stain Detection	Supports—OTA Upgrade
Smart Floor Re-mopping	Supports (up to 3 times) —OTA Upgrade
In-Progress Task Adjustment	Supports (Temporarily add or skip cleaning task)
Wi-Fi / Smartphone App	Supports (EZVIZ App)
Wi-Fi Frequency Band	2.4 GHz
Voice Control	Google Assistant & Amazon Alexa & Siri (third-party's)
Child Lock	Supports
Camera Max. Resolution	1920 × 1080
Smart Detection	Obstacle Recognition, Room Recognition & Mapping, Carpet Recognition, AI-Powered Human Shape Detection, AI-Powered Pet Detection, AI Task
Supported Languages	Currently supports English (by default), German, French, Italian, Spanish, Portuguese, Polish, Arabic, Turkish, Vietnamese, Thai, Indonesian, Russian, Japanese, Korean, & Chinese, and will support more in the future
Base Station
Water Level Adjustment	65 W
Rated Power (Dust empty state)	965 W
Rated Power (Cleaning with hot water state)	1265 W
Rated Working Voltage	AC: 220-240V~50/60Hz (EU&KR Standard) AC: 100-127V~50/60Hz (JP Standard)
Rated Output	20 V == 2.5 A
Clean Water Tank Capacity	5 L
Water Level Adjustment	4.2 L
Dust Bag Capacity	5 L
Auto Hot Water Mop Washing	Supports (60°C)
Auto Mop Installation & Detachment	Supports
Auto Side Brush Lifting	Supports
Auto Clean Water Refilling	Supports
Auto Cleaning Solution Adding	Supports
Low Water Level Alert	Supports
Auto Hot Air Drying	Supports
Interaction	Touch Buttons
Robot
Battery Capacity	65 W
Robot Working Voltage	14.4 V
Dust Box Capacity	0.35 L
Water Tank Capacity	0.1 L
Tangle Detection	Supports
Brush Type	3-in-1 CutFree Brush 2.0
Auto Fill light	Supports (With spotlight)
Noise Level	≤65 dB (A) on Standard Mode (Sweep)
Robot Accessories
Dust Box Filter	E11 Level High Efficiency Filter
Washable Filter	Supports
Main Brush Type	Auto-lifting Main Brush
Main Brush Material	Rubber + Bristle + Hair Cutting Blade
Side Brush	Left + Right
Mop Pad	2 Mop Clothes
Robot Part	Dust Bag	Mop Cloth	Side Brush	Main Brush	High Efficiency Filter
Maintenance Frequency (Week)	-	-	2	1	1
Replacement Frequency (Month)	3-4	2-3	3-6	6-12	3-6
General
Product Dimensions	365 × 365 × 101 mm (Robot) 452 × 481 × 529 mm (Base Station)
Packaging Dimensions	520 × 538 × 582 mm
Net Weight	4.0 kg (Robot) 12 kg (Base Station)
Weight with Package	23.36 kg
In the box
In the box	- Robot Vacuum & Mop Cleaner
	- Base Station
	- Side Brush ×2
	- Mop Assembly ×2
	- Cleaning Tool
	- Cleaning Solution
	- Power Cord
	- Camera Sticker
	- Quick Start Guide ×2
	- Regulatory Information
Certifications
Certifications	CE-EMC / CE-LVD / CE-RED / ErP / CE-ROHS / REACH SVHC / WEEE / CB / UN38.3
