H6c G1

Detail

A Remodel of Your Favorite

H6c

Ultra HD

Impressive

85° Tilt

From floor to ceiling

350° Pan

From wall to wall

A Renowned H6c Family

7,000,000+

Units Sold Globally from 2022-2024²

A Human-Centered Design Heritage

International Design Awards Received by EZVIZ from 2022-2024³

Most Low-Cost Indoor Cameras

With Limited Vision & Smartness

Coverage

Smartness

Ease of Use & Installation

Cost-Effectiveness

Coverage

Smartness

Ease of Use & Installation

Cost-Effectiveness

Other Popular Indoor Cameras

With High Prices & Non-Frequent Updates

Coverage

Smartness

Ease of Use & Installation

Cost-Effectiveness

*The chart is only for illustration purposes to show the overall competence of the H6c G1 (4K), based on the EZVIZ Lab's test results of other commonly seen product models sold in the market.

ULTRA HD

The redesigned H6c is designed to see much more than most cameras in the market. It's easier than ever to find the best installation spot and use it flexibly for your home and business.

Detects human motions

Detects your active pets⁴

Alerts a sudden sound⁵

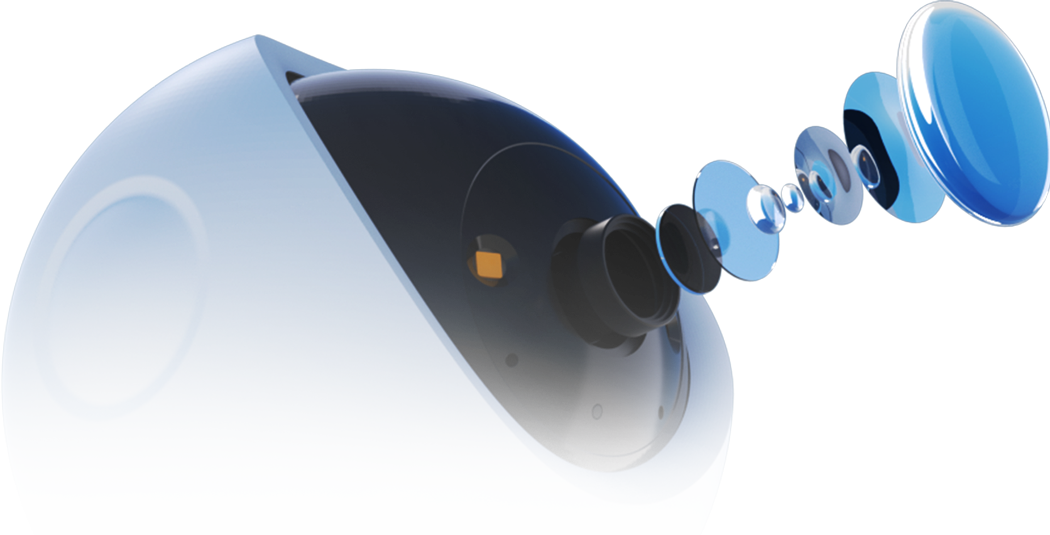

Zooms in for clearer details

Keeps the motion sharp and in focus

See how color night vision
makes a moment different

See how color night vision makes a moment different

Privacy is always our priority, especially if you need a little time yourself. That’s why we make sure that the camera not only blacks out its view digitally, but also physically. With a tap, the camera lens rolls black into the housing, just like a person closing their eyes.

Create your own security check routines, so the camera knows exactly where to focus. Once you've chosen the areas that matter most, the camera will automatically patrol those spots and alert you when necessary.

Supports MicroSD Card

Supports EZVIZ CloudPlay Storage

EZVIZ C6N G1 - Next-Generation Pan & Tilt Wi-Fi Smart Home Indoor Camera

50%

Video Storage Space

50%

Required Bandwidth

Privacy Shutter

We put security as the primary goal of every product and system that we build. We have also developed various privacy features and flexible settings that you can use at any time to feel even safer.

Local storage cards must be purchased separately. Cloud storage service is only available in certain market regions. Please verify availability before making a purchase.
The sales data are collected by EZVIZ from all of its traceable sales channels in the international markets (excluding mainland China) and refer to the total units sold of the H6c family (including the past H6c and H6c models that have an identical appearance)from the period 2022-2024.
The awards shown on this page include all the product design awards that EZVIZ as a company won from 2022 to 2024, and are not honors only for indoor cameras.
Currently the H6c only supports smart detection on animal shapes that are similar to normal dogs and cats, and can not differentiate animal types with separated notifications.
Currently, for the loud noise detection feature, the H6c captures the sudden sound level change in the environment to send an alert notification, and can not differentiate sound types with separated messages.
Users need to choose the Wi-Fi frequency band during the device setup process. Please note that, once the choice is made, it can not be changed to another frequency band.
Data from EZVIZ Lab's test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.

H6c G1

All-new look. All-in performance.

Specifications

Specifications
Specifications	CS-H6c-R200-8H8WFL
Camera
Image Sensor	1/3" Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	4mm@F1.6, ViewAngle: 110°(Diagonal), 92° (Horizontal), 51°(Vertical)
Lens Mount	M12
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
WDR	True WDR
Compression
Video Compression	Video Compression H.264 / H.265
Video Bit Rate	Adaptive bit rate
Max. Resolution	4K (3840 × 2160)
Frame Rate	Self-adaptive during network transmission
Network
Smart Alarm	PIR Motion detection AI-Powered Human Shape Detection AI-Prowered Pet Shape Detection Loud Noise Detection
Wi-Fi Pairing	AP pairing / Bluetooth pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Interface
Storage	MicroSD card slot (max. 512 GB)
Power	Type-C
Wired Network	RJ45 × 1 (10 M / 100 M self-adaptive Ethernet port)
Wi-Fi
Standard	IEEE802.11a, 802.11b, 802.11g, 802.11n,
Frequency Range	2.4G: 2400~2483.5MHz 5G: 5170MHz-5250MHz
Channel Bandwidth	2.4G: Supports 20MHz 5GHz: Supports 80MHZ
Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps, 11nHT20 MCS7
Output Power (EIRP)	19 dBm
Antenna Gain	1.9 dBi
General
Operating Conditions	-10°C to 45°C (14°F to 113 °F ) Humidity 95% or less (non-condensing)
Power Supply	DC 5V / 2A
Power Consumption	Max. 8 W
IR Range	Max. 10 meters (32.81ft)
Dimensions	88 × 88 × 117.3 mm (3.46 × 3.46 × 4.61 inch)
Packaging Dimensions	103 × 103 × 168 mm (4.06 × 4.06 × 6.61 inch)
Net Weight	222 g (0.49 lb)
In the box
In the box	- H6c G1 Camera
	- Power Adapter
	- Power Cable
	- Drill Template
	- Mounting Plate
	- Screw Kit
	- Regulatory Information × 2
	- Quick Start Guide
Certifications
Certifications	CE / UL / WEEE / REACH / RoHS
