E6

Detail

Introduce EZVIZ E6, its first HomeKit-compatible security camera. Sleek styling with unrivaled functionality, it is designed to protect the whole family with even greater convenience. Excellent video quality, plenty of unique AI detection features, and wide compatibility with available smart home systems all make the camera a security
choice that can’t go wrong.

Apartments, condos, villas. Rented or owned. A new-build or an old house. The E6 is a plug-in Wi-Fi camera that can get installed easily, and boasts flexible features to cover different protection needs.

Attaches to walls

(additional wall mount bracket needs to be purchased separately)

Attaches to walls

(additional wall mount bracket needs to be purchased separately)

The E6 camera is very serious about video quality. It rotates to catch every angle with unprecedented 3K video clarity, while effectively reducing image overexposures to render scenes with balanced brightness.

Barks and Meows Detection

(Supported by Abnormal Sound Sensing Algorithm)

Barks and Meows Detection

(Supported by Abnormal Sound Sensing Algorithm)

So many important activities take place at home, and the E6 ensures you’re aware of them. When you’re not home but need someone to babysit your kids or feed your pets, the camera will detect what’s happening and let you know.

The camera can automatically zoom in up to 4 times to follow a moving person so you see details and get the whole picture at the same time. You can always enable the AI option to detect and track specifically human movements.

It’s important to know if you’re needed by your loved ones. The camera alerts you if the noise level suddenly changes – whether your baby cries or a siren blares. Even those who are not so “tech savvy” will enjoy the E6. They can start a video call to your phone by simply posing a victory sign at the camera.

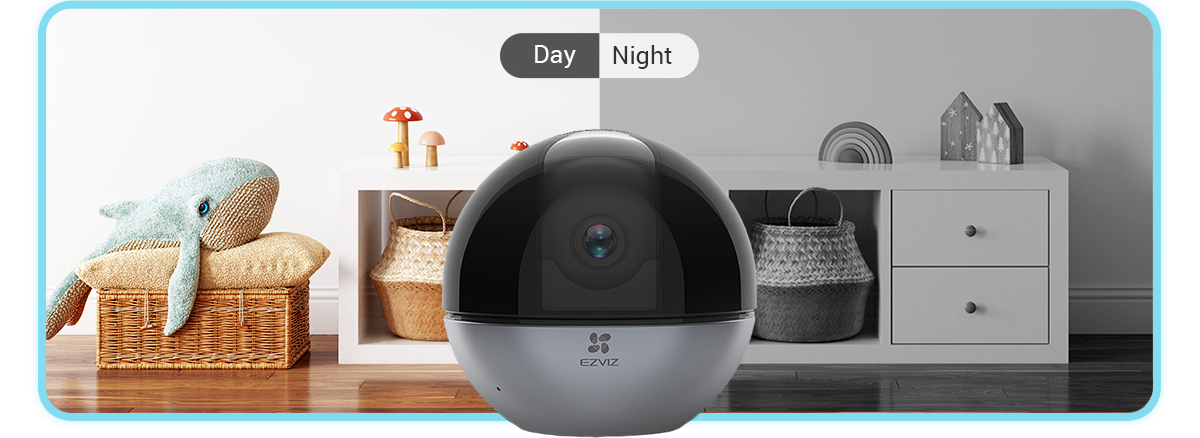

The E6 camera uses two powerful infrared lights to render sharp nighttime imaging at up to 10 meters. It can automatically switch between day and night vision as the lighting environment changes.

Easily manage your E6 via the EZVIZ App. What’s better, by working seamlessly with voice assistants, you can voice-enable the live view to check what’s happening on a bigger screen.

As EZVIZ’s first smart home security camera to fully support HomeKit, the E6 adds another layer of convenience for Apple users. You can view live cameras, get smart notifications, and set personalized automation on all your Apple devices.

Supports MicroSD Card

(Up to 512 GB)

Supports MicroSD Card

(Up to 512 GB)

Compared to the prevailing H.264 video compression technology, H.265 creates a more fluid viewing experience with recorded 3K videos. Meanwhile, you won’t have to worry about large video files taking up too much of your storage space – H.265 technology reduces their sizes by up to 50%⁴.

TLS

Data Transmission Encryption

AES-128

Data Encryption

You will need to choose the Wi-Fi frequency band during the device setup process. Once the choice is made, you will not be able to change it to another frequency band.
Local storage cards must be purchased separately. Cloud storage service is only available in certain markets. Please verify availability before making a purchase.
Google Assistant is not available in certain languages and countries. To gain full access to Apple HomeKit functions, a home hub is required. Now HomePod or Apple TV can be set up as a home hub, the list may update according to Apple’s policy.
Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, and other environmental factors.

Picture-perfect protection, pro style

Specifications

Specifications
Model	CS-E6-A0-8C5WF
Camera
Image Sensor	1/2.7" Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	4mm @ F2.0, viewing angle: 87° (Horizontal), 48° (Vertical), 103° (Diagonal)
PT Angle	Pan: 350°, Tilt: 75°
Minimum Illumination	0.51 Lux @ (F2.0, AGC ON), 0 Lux with IR
Lens Mount	M12
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
WDR	WDR 80dB
BLC	Supports
Night Vision	Up to 10 m / 32.8 ft
Video & Audio
Max. Resolution	2880 × 1620
Frame Rate	Self-Adaptive during network transmission
Video Compression	H.265 / H.264
Video Bit Rate	Ultra-HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate	Self-Adaptive
Max. Bitrate	5 Mbps
Network
Wi-Fi Standard	IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range	2.4G: 2400~2483.5 MHz 5G: 5170~5250 MHz，5735~5835 MHz
Channel Bandwidth	Supports 40 MHz
Security	WPA-PSK / WPA2-PSK
Transmission Rate	11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7; 11a 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Wired Network	RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Storage
Local Storage	Supports microSD card (Up to 512 GB)
Cloud Storage	Supports EZVIZ CloudPlay storage (Subscription required)
Function
Smart Alarm	AI-Powered Human Shape Detection / Pet Detection / Gesture Recognition / Voice Activity Detection / Bark and Meow Detection
Two-Way Talk	Supports
General Function	Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
General
Operating Conditions	-10°C to 45°C ( 14°F to 113 °F ), humidity 95% or less (non-condensing)
Power Supply	DC 5V/2A
Power Consumption	Max. 8W
Dimensions	95.8 × 95.8 × 90.6 mm (3.77 × 3.77 × 3.57 inch)
Packaging Dimensions	116 × 116 × 164 mm (4.57 × 4.57 × 6.46 inch)
Weight	Net weight: 252 g (8.89 oz) With package: 513 g (1.13 oz)
In the box
In the box	- E6 Camera
	- Power Adapter
	- Power Cable
	- Drill Template
	- Mounting Plate
	- Regulatory Information
	- Quick Start Guide
	- HomeKit Setup Instruction
Certifications
	UL / CE / RoHS / WEEE / REACH / FCC / UKCA
