DL06

Detail

Please note that only the exterior lock panel of the DL06 is rated IP55 to work in outdoor weather conditions, based on the EZVIZ Lab's test results.
The DL06 currently supports the following cameras to snap a photo or record a video at a certain preset viewing angle upon sensor detection: H6c, C6N, CP1, TY1, TY2. The list may grow as EZVIZ launches more compatible products in the future. Please refer to the device page on your EZVIZ App for detailed information about the supported integration.
The DL06 currently supports the T3C smart button for on-site Bluetooth unlocking within a communication range of 50 m, based on the test results in an open and interference-free environment. Actual use may vary due to the specific environment. To use this function, the user should first connect the DL06 to the Wi-Fi network to enable the EZVIZ App settings, and follow the pairing instruction on the device page to connect it with the T3C smart button via Bluetooth.
When the privacy mode is enabled, only the administrator can unlock the door using his / her fingerprints, passcodes or proximity cards, or anyone with the mechanical emergency key.

DL06

Unlock your door right at your hand

Specifications

Specifications
Model	CS-DL06-R100-WBCP-GR
Material and Specification
Panel Material	Aluminum alloy

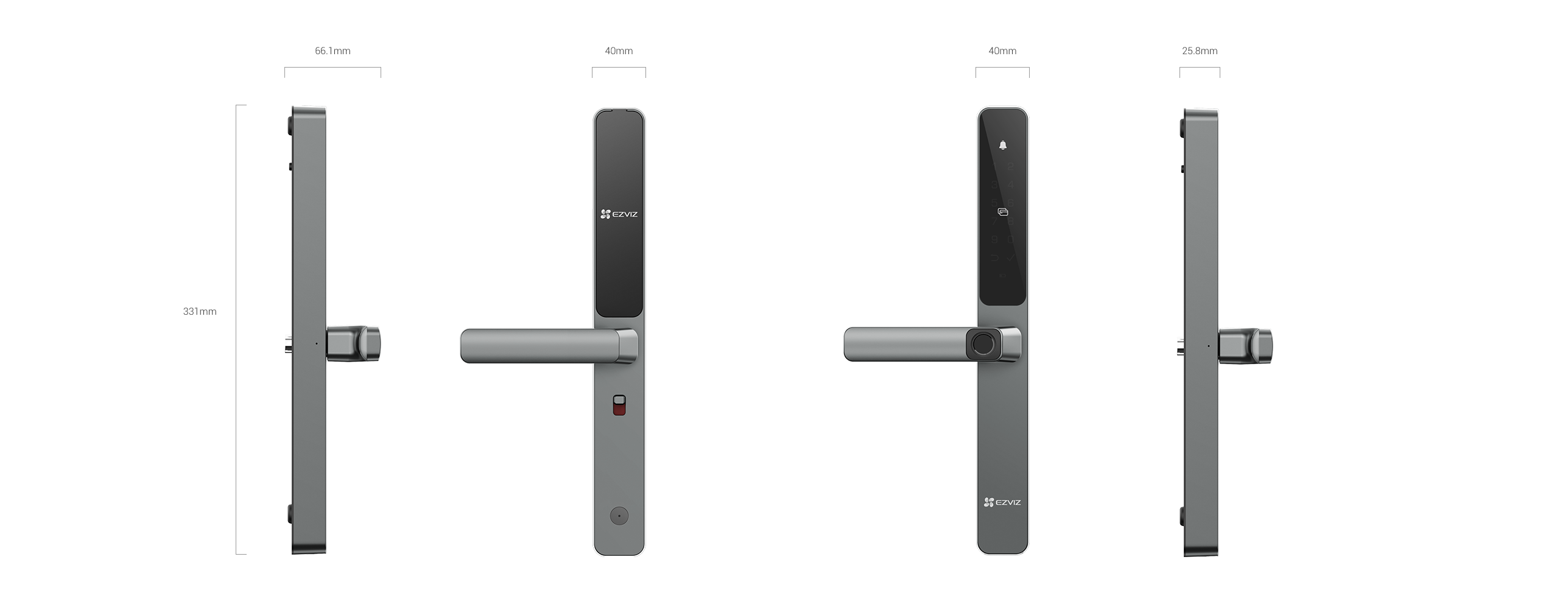

Panel Size	331 × 40 × 25.8 mm
Color	Metallic grey
Lock Body Type	Lift-up lock body
Lock Cylinder	2885 / 3585 / 4585
Weatherproof	IP55 (front panel)
Emergency Charging	Type-C
Working Power	1,450 mAh Rechargeable Lithium Battery
Technical Specification
Unlocking Method	Fingerprint, passcode, proximity card, mechanical key, Bluetooth remote control，Bluetooth key via EZVIZ App, temporary codes, remote unlock
User Capacity	50 pcs
Fingerprint Capacity	50 pcs
Passcode Capacity	50 pcs
Card Capacity	50 pcs
Communication Methods	2.4GHz Wi-Fi, Bluetooth
Temporary Access Codes	Supports
Anti-Peeping Codes	Supports, Max. 20 digits
Low Battery Warning	Supports
Privacy Mode	Supports
User Management	Supports

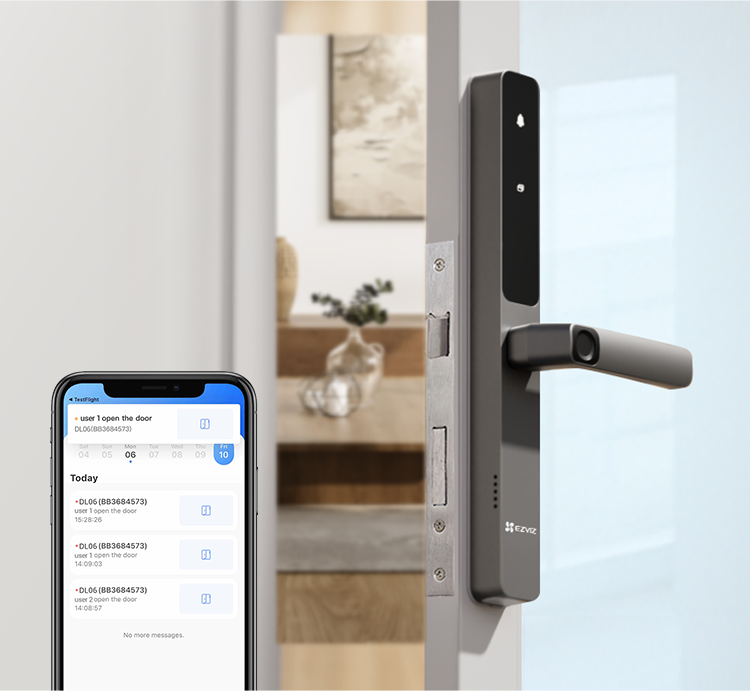

Real Time Notification	Supports
Anti-Test Locking	Supports, enter error 5 times within 5 min, locking 3 min.
Anti-Tamper Alarm	Supports
Remote Control	Supports
Supported Door Thickness	30-120 mm
Working Temperature	-10°C~55°C
Operating Humidity	10%~95%
In the box
In the box	- DL06 Front Panel
	- DL06 Rear Panel
	- Hole Templet
	- Lock Body
	- Standard Screw Bag
	- Lithium Battery
	- Mechanical Key × 2
	- Square Rod
	- Proximity Card × 2
	- Screwdriver
	- Regulatory Information
	- Quick Start Guide
Certifications
Certifications	CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE
