CB8 Lite 4K Wi-Fi Battery Camera

Detail
Specifications
Support

CB8 Lite 4K

CB8 Lite
Wi-Fi Battery Camera
Steps Up Your Outdoor Protection Sharper in 4K and Smarter in Tracking
Ultra-clear
4K Resolution
360° Panoramic Coverage
Smart Color Night Vision
Always-on Video Mode¹
for All-Day Recording
Works with EZVIZ Solar Panels² for Longer Standby Time
15 images/second
Time-Lapse Video
AI-Powered
Human / Vehicle Shape Detection
Auto-Zoom Tracking
Step 1
Detects
Step 2
Auto-Zooms
Step 3
Follows
Wi-Fi 6
for Stable Video Streaming
Weatherproof Design
Active Defense with
Siren & Light Strobe
Local & Cloud Storage³
Ultra-clear
4K Resolution
360° Panoramic Coverage
Smart Color Night Vision
Always-on Video Mode¹
for All-Day Recording
Works with EZVIZ Solar Panels² for Longer Standby Time
15 images/second
Time-Lapse Video
Works with EZVIZ Solar Panels² for Longer Standby Time
Auto-Zoom Tracking
Step 1
Detects
Step 2
Auto-Zooms
Step 3
Follows
Wi-Fi 6
for Stable Video Streaming
AI-Powered
Human / Vehicle Shape Detection
Weatherproof Design
Local & Cloud Storage³
Active Defense with
Siren & Light Strobe
Ultra-Clear 4K Resolution
Brings Every Corner Into Sharp 4K
The CB8 Lite paints your outdoors in breathtaking, cinema-grade 4K resolution, ensuring every detail stays crisp and clear so nothing gets lost in the blur.
Ultra HD

4K
4K Resolution
1080p Resolution
4K Resolution
1080p Resolution
360° Panoramic Coverage
Covers Every Corner In 360° Panorama
With its smooth pan-tilt design, the camera delivers full 360° coverage, sweeping across your entire space in one complete view with fewer blind spots.
350°
Horizontal Rotation
80°
Vertical Rotation
Always-on Video Mode
Upgrades Your Battery-Powered All-Day Recording
Unlike typical battery cameras that struggle to compromise either recording performance or battery life, this camera features EZVIZ's groundbreaking AOV technology.
How EZVIZ AOV works?
15 images/second
Normal Speed
Smart Auto
Time-Lapse Video
15 images/second
Normal Speed
WITH AOV
Human Detected
Human Detected
Human Detected
WITHOUT AOV
No Event = No Recording
WITH AOVWITHOUT AOV
Human Detected
15 images/second
Normal Speed
Human Detected
Smart Auto
Time-Lapse Video
Human Detected
15 images/second
Normal Speed
Human Detected
15 images/second
Normal Speed
Human Detected
Smart Auto
Time-Lapse Video
No Event = No Recording

Human Detected
15 images/second
Normal Speed
Why EZVIZ AOV helps?

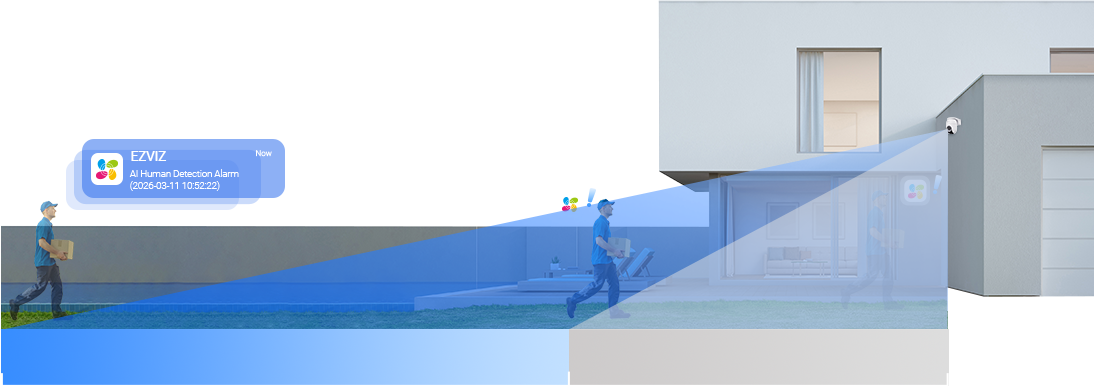

Wider Longer Detection Range
To see and respond to any activity earlier
WITHOUT AOV

Up to 25 meters⁴
Only 9 meters
Only 9 meters
Wiser Power Consumption
To adjust recording intervals automatically based on battery power conditions
Standalone
Battery Camera
All-Day Recording⁵
Battery Camera +
Solar Panel
All-Year Nonstop Protection⁶
Standalone
Battery Camera
All-Day Recording⁵

Battery Camera + Solar Panel
All-Year Nonstop Protection⁶

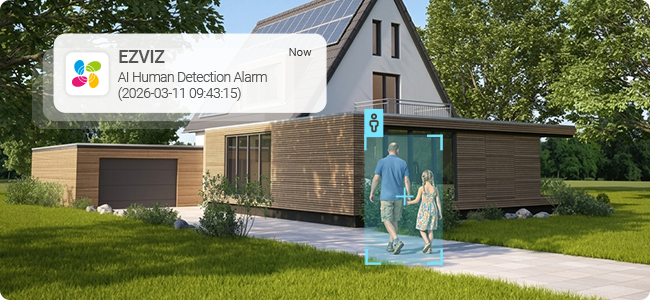

AI-Powered Human Shape & Vehicle Detection
Stays Informed With Smart Alerts For Free
The camera cuts through hours of footages by telling the difference between people, vehicles, and everyday motion. Instead of babysitting the live view, your camera will flag the crucial times and notify you on the EZVIZ App.
Customizable Detection Zones
Accurate Detection Alerts

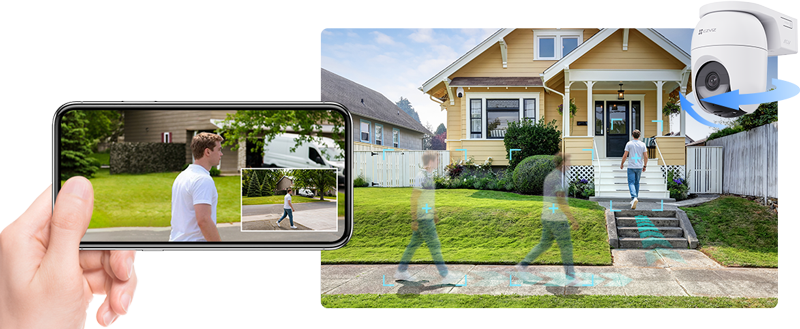

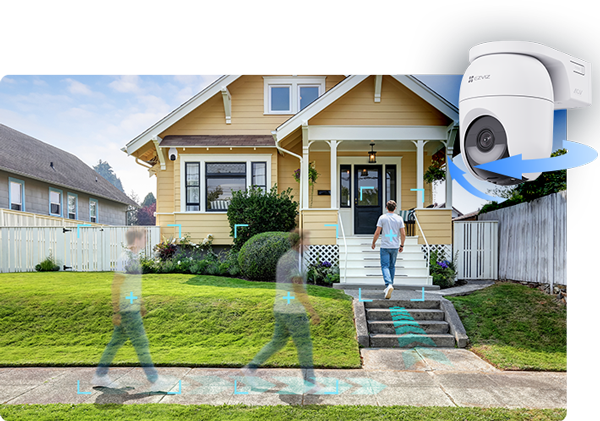

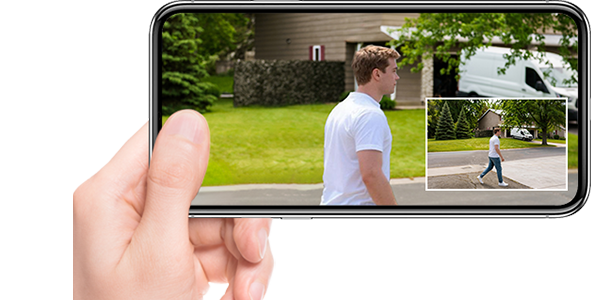

Auto-Zoom Tracking
Keeps What Matters in Sharp Focus With Auto Zoom
With auto-zoom tracking, the camera doesn't make important moments slip out of frame. When the camera detects human movement, it automatically pans to stay locked on the action and zooms in for a closer look.
Smart Color Night Vision
Lights Up Your Night With Bright Colors
Say goodbye to blurry, washed-out night footage. Powered by built-in spotlights, the CB8 Lite brings the night to life with vivid, full-color clarity, even in near-total darkness.
2 Spotlights| Full-Color Night Vision
2 IR Lights| Black & White Night Vision
Brings More Convenience For Extra Peace of Mind

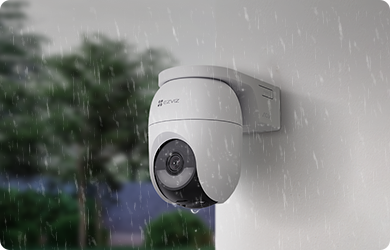

Weatherproof Design
Delivers Protection Whenever Rain Or Shine
Private property. Please do not enter!
Active Defense
Deters Potential Risks With Sound & Light Strobe
How can I help you?
You have a delivery.

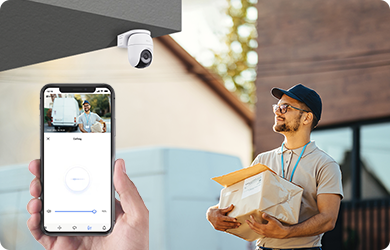

Two-Way Talk
Responds To Visitors With Your Phone
Wi-Fi 6 Network (2.4GHz)
Enables Smooth Video Streaming
Local & Cloud Storage
Saves Your Videos With Two Options
H.265 Video Compression
Enjoys Video Experiences with H.265⁷
We're committed to protecting with trust
We put security as the primary goal of every product and system that we build, and assiduously improve our practices to better protect your device, data and privacy.
Learn more about our security practices >
End-to-end Data Encryption
AES
Data Encryption
TLS
Data Transmission Encryption
Our global certifications in the fields of information security, privacy information security, and cloud security
End-to-end Data Encryption
AES
Data Encryption
TLS
Data Transmission Encryption
Our global certifications in the fields of information security, privacy information security, and cloud security
Use of this feature requires that a compatible local storage card (sold separately) be inserted into the camera.
The solar panel is not included in the kit. Product compatibility should be verified prior to purchase.
A compatible local storage card must be purchased separately. Cloud storage services are available only in selected markets; availability should be verified prior to purchase.
When AOV mode is enabled, EZVIZ Lab testing conducted under standard conditions indicates that the camera can detect motion at distances of up to 25 m in daylight and up to 12 m at night. Under the same test conditions, other battery-powered models using PIR-based detection typically provide a detection distance of up to 9 m. Actual detection performance may vary due to environmental conditions and installation factors.
Based on EZVIZ Lab testing conducted under standard conditions, the CB8 Lite provides a battery life of 95 days in standard PIR-triggered mode, assuming 5 minutes of camera activity per day. Under the same test conditions, the CB8 Lite provides a battery life of 15 days when AOV mode is enabled with the automatic interval setting. Actual battery performance may vary due to environmental conditions and usage patterns, including event frequency, recording duration, and live viewing.
Data from EZVIZ Lab's test results, under the following standard condition: AM=1.5 , 25°C, 1000W/m² and SMQ. The results are obtained based with the camera operating in AOV mode and the AOV interval set to AUTO. Actual charging efficiency may vary depending on sunlight intensity and other environmental conditions. Actual camera operating hours may also differ based on usage patterns, activity frequency, and environmental factors.
Based on EZVIZ Lab testing conducted under standard conditions. Video compression efficiency may vary depending on scene complexity, motion frequency, lighting conditions, and other environmental factors.

CB8 Lite 4K

Brings Every Corner Into Sharp 4K

Specifications

Specifications
Model	CS-CB8c-R200-1Q8WFL, CS-CB8c (4K)
Camera
Image Sensor	1/2.45" 8-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination	0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	Self-Adaptive Shutter
Lens	4mm @ F1.6 Diagonal Angle: 96° Horizontal Angle: 79° Vertical Angle:42°
PT Angle	Pan: 350°, Tilt: 80°
Day & Night	IR-cut filter with auto switch
DNR	3D DNR
Night Vision	15 m
Video&Audio
Max. Resolution	4MP
Frame Rate	15fps. Self-Adaptive during network transmission
Video Compression	H.265 / H.264
Video Bit Rate	Ultra HD; Quad HD, Full HD; Hi-Def .Adaptive bit rate.
Audio Bit Rate	Self-Adaptive
Max. Bitrate	4 Mbps
Network
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n, 802.11ax
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Support 20MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11Mbps,11g :54Mbps,11n :72Mbps, 11ax:114Mbps
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement	4 Mbps
Function
Smart Alarm	AI Human Detection, AI Vehicle Detection
Two-way Talk	Supports
General Function	Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage	Supports Local (Up to 512 GB) & Cloud Storage
Cloud Storage	EZVIZ Cloud Storage
General
Operating Conditions	-20°C to 50°C (-4°F to 122 °F ), Humidity 95% or less (non-condensing)
IP Grade	IP65
Power Supply	DC 5V/2A (Adapter needs to be purchased separately)
Battery Capacity	5200 mAh
Power Consumption	Max. 10W
Product Dimensions	168 × 100 × 137.2 mm
Package Dimensions	205 × 145 × 194 mm
Product Weight	640 g
Weight with package	900 g
In the box
In the box	- CB8 Lite Camera
	- Power Cable
	- Drilling Template
	- Screw Kit
	- Quick Start Guide × 2
	- Regulatory Information × 2
Certifications
Certifications	CE / REACH / WEEE / RoHS
